Advantech CorpTaiwan, China

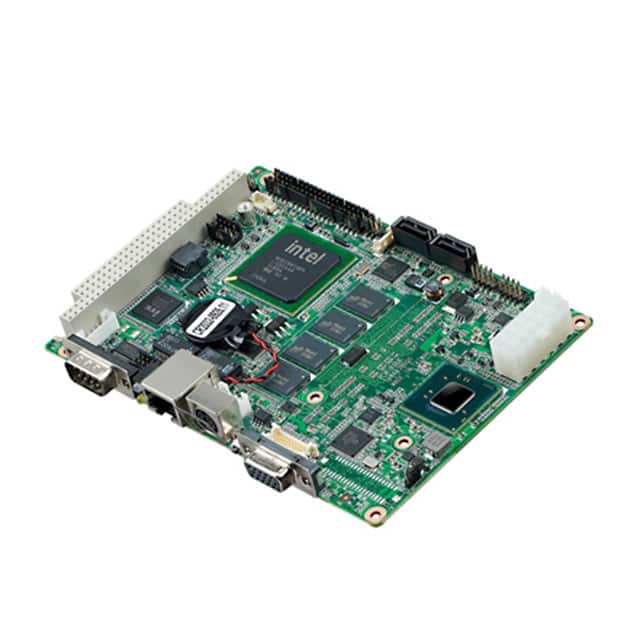

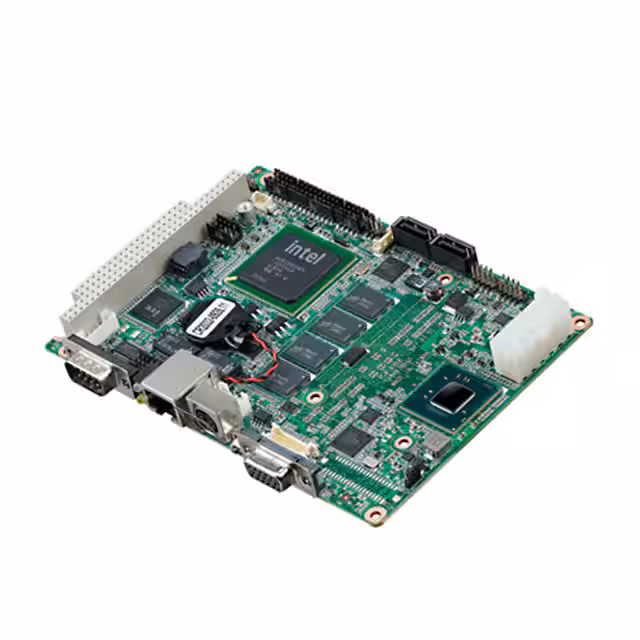

SBC ATOM D525 1.8GHZ SODIMM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (Watts) | 9.7W |
| Environment and package | |
| Operating Temperature | 0°C~60°C |
| Package | Box |
| Size / Dimension | 5.700" x 4.000" (144.78mm x 101.60mm) |
| Other | |
| Analog Input:Output | - |
| Cooling Type | Fan |
| Core Processor | Atom D525 |
| Digital I/O Lines | 8 |
| Ethernet | 10/100/1000Mbps |
| Expansion Site/Bus | LPC, PC/104 |
| Form Factor | 3.5" CPU Boards |
| Mfr | Advantech Corp |
| Number of Cores | 2 |
| Product Status | Obsolete |
| RAM Capacity/Installed | 4GB/1GB |
| RS-232 (422, 485) | 4 |
| Series | - |
| Speed | 1.8GHz |
| Storage Interface | SATA2, CompactFlash |
| USB | USB 2.0 (4) |
| Video Outputs | LVDS, TTL, VGA |
| Watchdog Timer | Yes |
