PCM-9562NZ-1GS6A1E
Advantech CorpTaiwan, China

PCM-9562NZ-1GS6A1E

ObsoleteSingle Board Computers (SBCs), Computer On Module (COM)

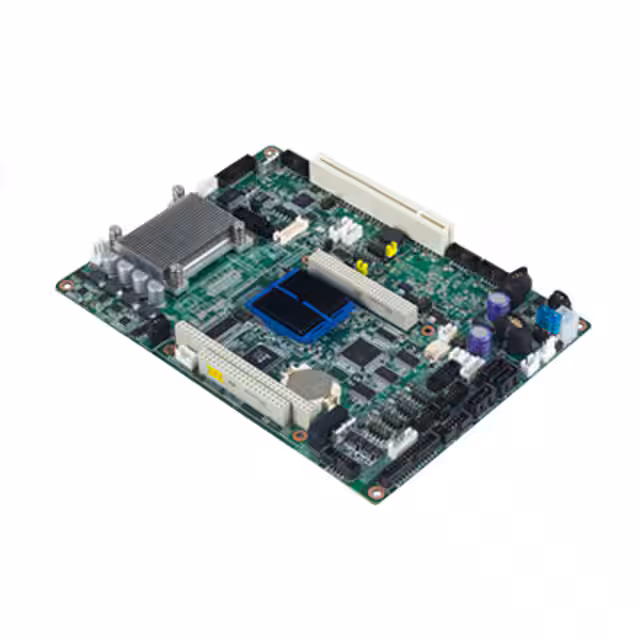

SBC ATOM N450 1.66GHZ 1GB BUNDLE

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Power (Watts)10.8W
Environment and package
Operating Temperature-20°C~80°C
PackageBox
Size / Dimension8.000" x 5.750" (203.20mm x 146.05mm)
Other
Analog Input:Output-
Cooling TypeHeat Sink
Core ProcessorAtom N450
Digital I/O Lines16
EthernetGbE
Expansion Site/BusMini-PCIe, PCI, PC/104-Plus
Form FactorEBX
MfrAdvantech Corp
Number of Cores1
Product StatusObsolete
RAM Capacity/Installed2GB/0GB
RS-232 (422, 485)6
Series-
Speed1.66GHz
Storage InterfaceSATA2, CompactFlash, Floppy, SPI Flash
USBUSB 2.0 (8)
Video OutputsLVDS, VGA
Watchdog TimerYes

Documents

No documents are linked to this part yet.
