PDTC114EM-Q
Nexperia USA Inc.Netherlands

PDTC114EM-Q

ActiveSingle, Pre-Biased Bipolar Transistors

50 V, 100 mA NPN resistor-equipped transistors; R1 = 10 kΩ, R2 = 10 kΩ

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Channel typeNPN
Environment and package
Automotive qualifiedY
Halogen freeYes

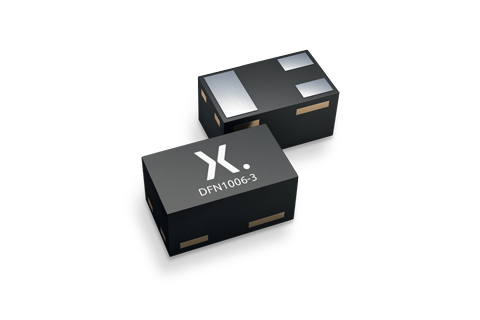

Package nameDFN1006-3
Package versionSOT883
RoHSCompliant
Size1 x 0.6 x 0.48
Other
IC [max]100
Ptot250
R1 (typ)10
R2 (typ)10
Tj [max]150
VCEO50
