Nexperia USA Inc.Netherlands

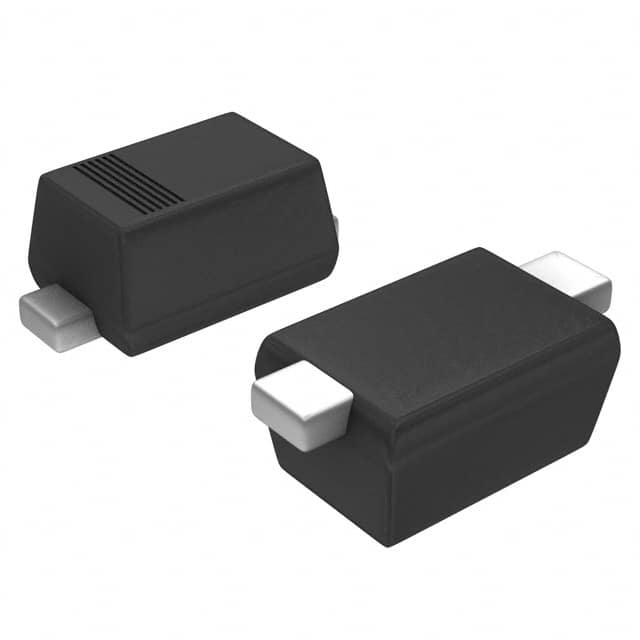

TVS DIODE 5VWM 14VC SOD523
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage5 V
Breakdown voltage5.5 V
Clamping voltage14 VMax
Peak pulse power130 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 12A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 130W |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 14V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | 35pF @ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TA) |
| Package | Tape & Reel (TR) |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Other | |
| Applications | General Purpose |
| Base Product Number | PESD5V0 |
| Mfr | Nexperia USA Inc. |
| Product Status | Obsolete |
| Series | - |
| Type | Zener |
Documents
No documents are linked to this part yet.
