Flex Power ModulesSweden

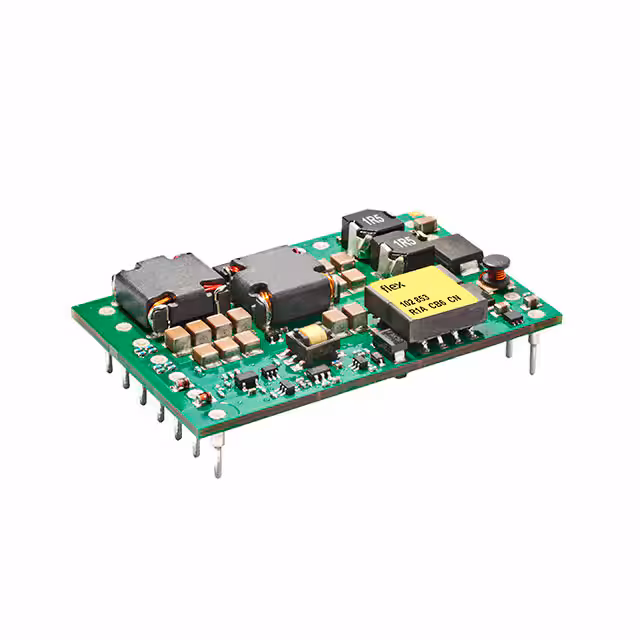

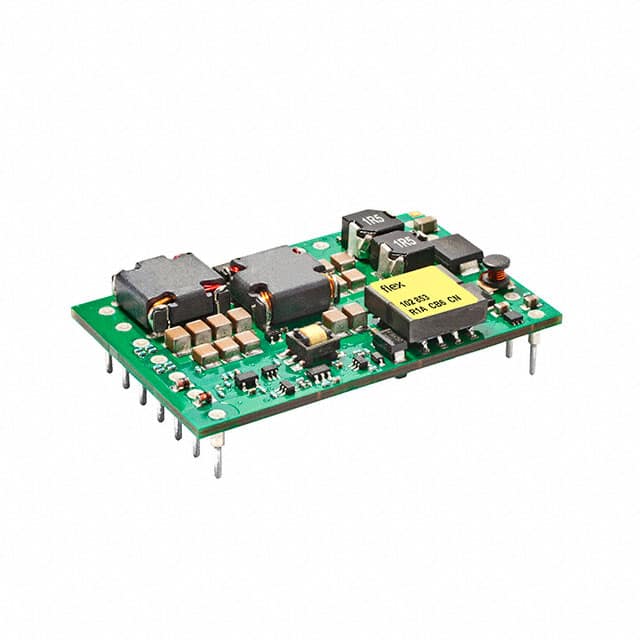

DC DC CONVERTER 3.3V 5V 58W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage36 ~ 75 V
Output voltage3.3 V
Output current12 AMax
Power58 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 12A, 3.6A |
| Power (Watts) | 58 W |
| Voltage - Input (Max) | 75V |
| Voltage - Input (Min) | 36V |
| Voltage - Isolation | 2.25 kV |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~110°C(WithDerating) |
| Package | Tray |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.42" H (57.9mm x 36.8mm x 10.7mm) |
| Supplier Device Package | Quarter Brick |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CSA, IEC, TUV, UL |
| Base Product Number | PIM 432 |
| Control Features | - |
| Efficiency | 98.80% |
| Features | Adjustable Output, PMBus™ |
| Mfr | Flex Power Modules |
| Number of Outputs | 2 |
| Product Status | Active |
| Series | PIM 4328 (540-648) |
| Standard Number | 62368-1 |
| Type | Isolated Module |
