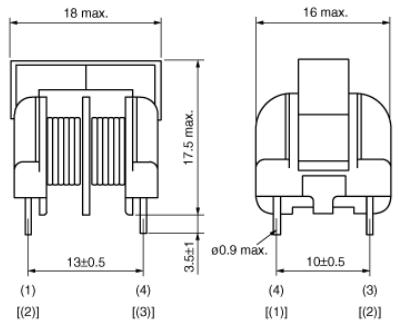

(in mm)

PLA10AN1522R0R2B

COMMON MODE CHOKE 1.5MH 2A 300VAC THREADED

Murata PLA10AN1522R0R2B common mode choke, rated current 2A, rated voltage 300Vac, common mode inductance 1.5mH, operating temperature -25°C to 60°C, standard winding.Checked against the datasheet

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Number of lines2

Current rating2 AMax

DC resistance150 mΩMax

Datasheet-verified parameters

14 items

Parameter	Value and test conditions	Source
Lines	2 (N1, N2)
Rated Current	2A
DC Resistance	0.15Ω (max.)
Common Mode Inductance	1.5mH (min.)
Rated Voltage	300Vac
Operating Temperature Range	-25°C to 60°C
Winding Temperature Rise	60°C (max.) at Rated Current
Insulation Resistance	100MΩ (min.)
Withstanding Voltage	2000V(AC)(1minute) or 2400V(AC)(1second)
Mass	7.2g (typ.)
Winding Mode	Standard Winding
Length	18mm max.
Width	16mm max.
Thickness	17.5mm max.

All parameters (9)ExpandCollapse

Power
Rated Current	2A
Rated Voltage	300Vac
Withstanding Voltage	2000V(AC)(1minute) or 2400V(AC)(1second)
Environment and package
Operating Temperature Range	-25°C to 60°C
Winding Temperature Rise(at Rated Current)(max.)	60°C
Other
Common Mode Inductance(min.)	1.5mH
DC Resistance(max.)	0.15Ω
Insulation Resistance(min.)	100MΩ
Mass(typ.)	7.2g
