Peerless by TymphanyUnited States

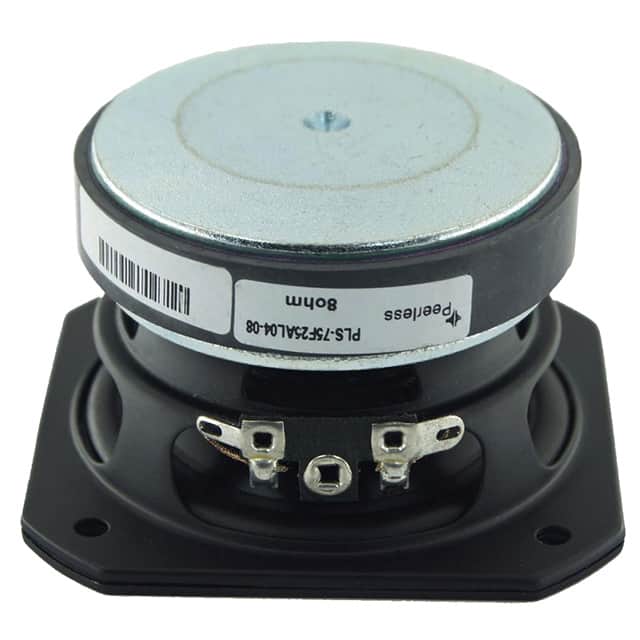

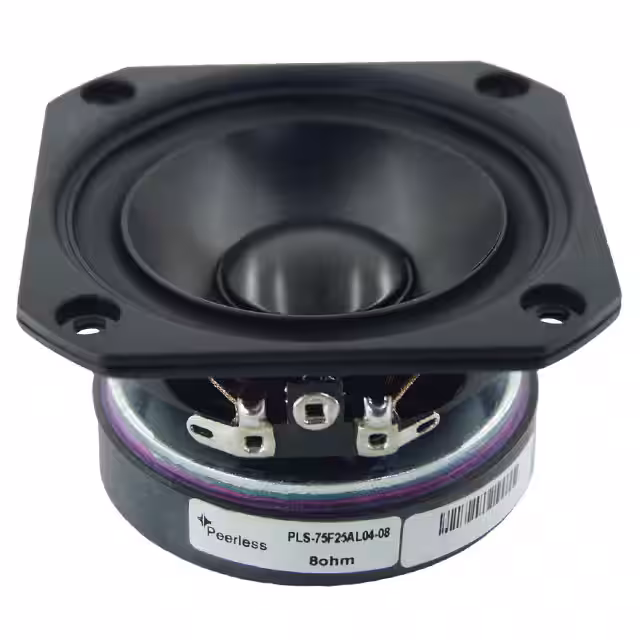

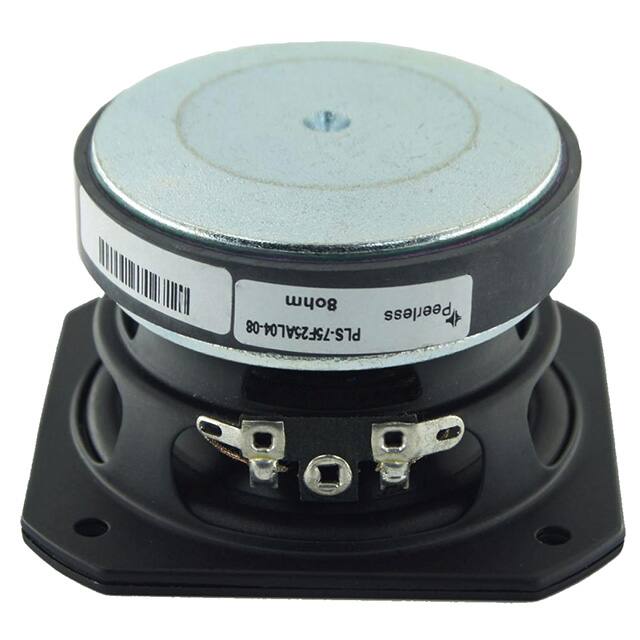

SPEAKER 8OHM 25W TOP PORT 84.5DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Rated | 25 W |
| AC and DC characteristics | |
| Frequency Range | 100 Hz ~ 20 kHz |
| Frequency - Self Resonant | 106.89Hz |
| Impedance | 7.42 Ohms |
| Environment and package | |
| Height - Seated (Max) | 1.862" (47.30mm) |
| Package | Bulk |
| Size / Dimension | 3.071" L x 3.071" W (78.00mm x 78.00mm) |
| Other | |
| Efficiency - dBA | 84.50 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Ingress Protection | - |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Ferrite |
| Mfr | Peerless by Tymphany |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | - |
| Series | PLS |
| Shape | Round, Square Frame |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Full Range |
