Nexperia USA Inc.Netherlands

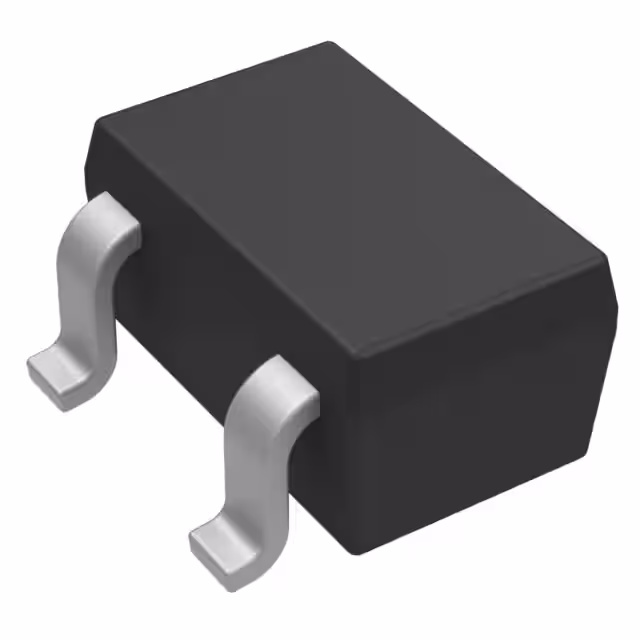

MOSFET P-CH 20V 1A SOT323
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage20 V
Continuous drain current1 A
On-resistance200 mΩMax · 1A
Gate threshold voltage1.15 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 1A (Ta) |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V |
| Power Dissipation (Max) | 290mW (Ta), 1.67W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
| Other | |
| Base Product Number | PMF170 |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 3.9 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 280 pF @ 10 V |
| Mfr | Nexperia USA Inc. |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 1A, 4.5V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±12V |
| Vgs(th) (Max) @ Id | 1.15V @ 250µA |
