onsemiUnited States

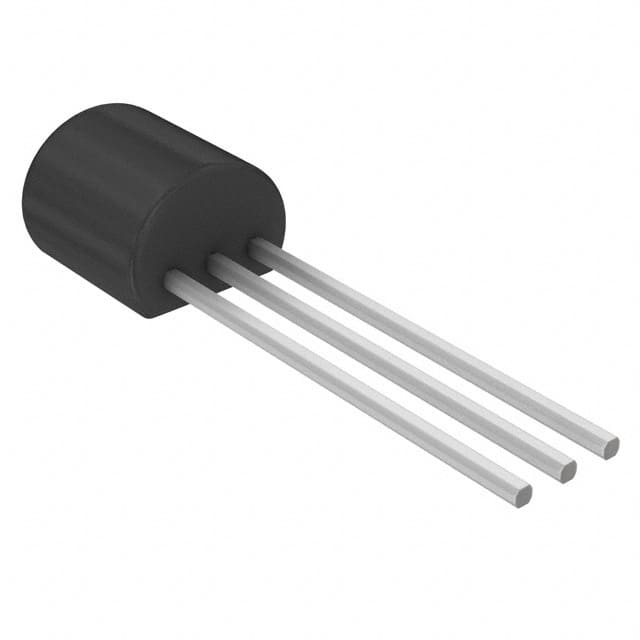

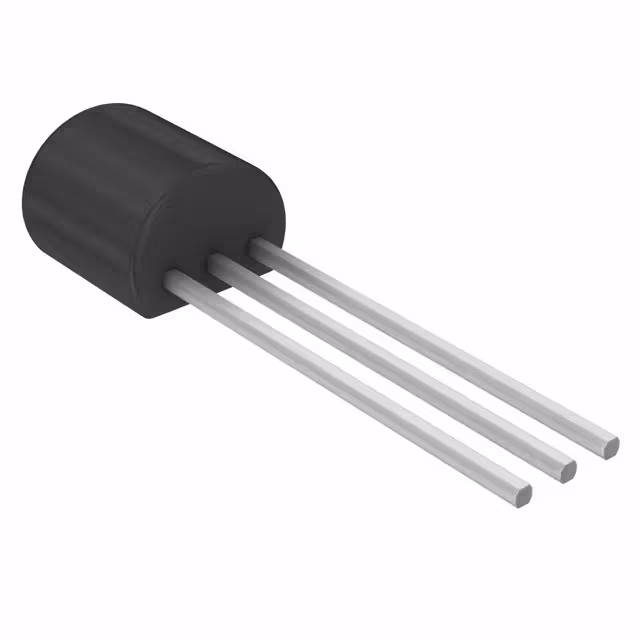

JFET N-CH 40V 0.35W TO92
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Drain (Idss) @ Vds (Vgs=0) | 30 µA @ 10 V |
| Power - Max | 350 mW |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Voltage - Cutoff (VGS off) @ Id | 600 mV @ 1 nA |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 |
| Other | |
| Base Product Number | PN4117 |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 3pF @ 10V |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
Documents
No documents are linked to this part yet.
