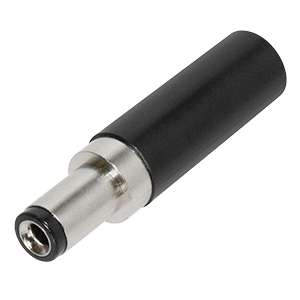

CONN PWR PLUG 1.X3.3X5.5MM SLDR
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 5 A |
| Voltage - Rated | 24VDC |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | 0°C~40°C |
| Package | Bag |
| Thread Size | - |
| Other | |
| Actual Diameter | 0.039" (1.00mm ID), 0.217" (5.50mm OD) |
| Body Color | Silver, Black |
| Body Material | Brass |
| Connector Type | Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Features | Strain Relief |
| Gender | Male |
| Housing Material | Polyvinyl Chloride (PVC) |
| Includes | 2 pcs - 1 Connector, 1 Handle |
| Industry Recognized Mating Diameter | 1.00mm ID (0.039"), 3.30mm ID (0.130"), 5.500mm OD (0.217") EIAJ-4 |
| Ingress Protection | - |
| Insulation Color | Yellow |
| Internal Switch(s) | Does Not Contain Switch |
| Material Flammability Rating | - |
| Mating Length/Depth | 0.374" (9.50mm) |
| Mfr | CUI Devices |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Product Status | Active |
| Series | - |
| Shielding | Unshielded |
| Termination | Solder |
