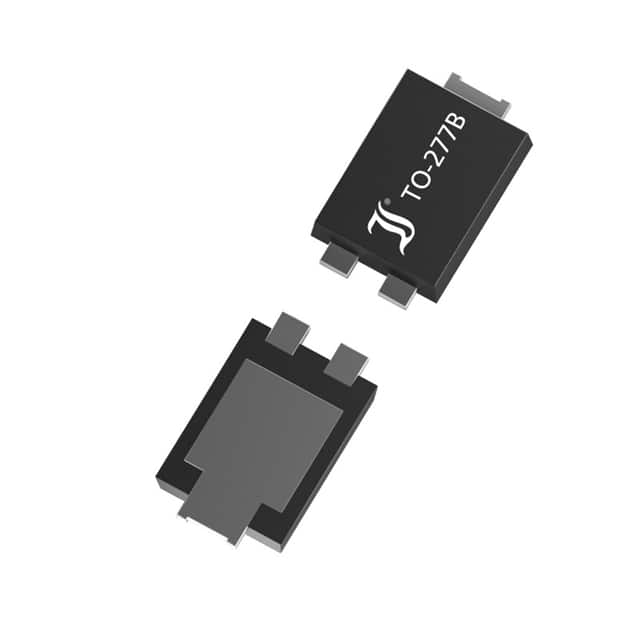

DIODE SCHOTTKY 60V 20A TO277
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage60 V
Average rectified current20 A
Forward voltage630 mVMax · 20 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 20A |
| Current - Reverse Leakage @ Vr | 150 µA @ 60 V |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 630 mV @ 20 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -50°C~150°C |
| Package | Tape & Reel (TR) |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277 |
| Other | |
| Capacitance @ Vr, F | - |
| Diode Type | Schottky |
| Mfr | DComponents |
| Product Status | Active |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
