Diodes IncorporatedUnited States

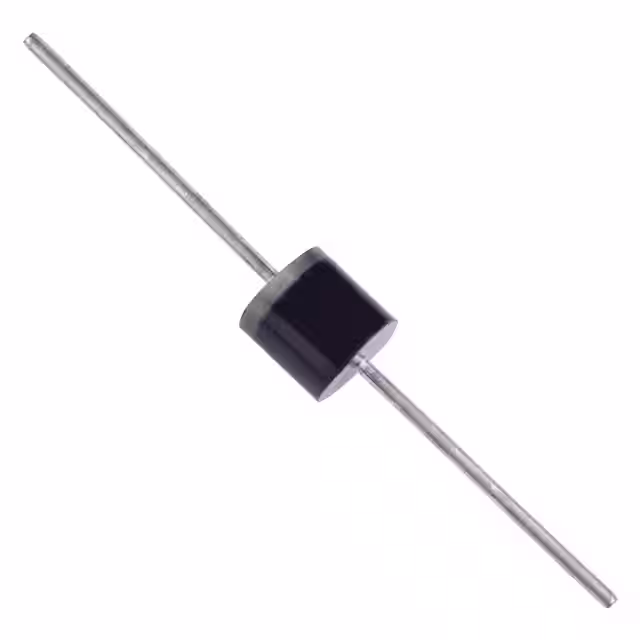

DIODE GEN PURP 400V 6A R-6
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage400 V
Average rectified current6 A
Forward voltage1.2 VMax · 6 A
TypeStandardFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 6A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 6 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -65°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | R-6, Axial |
| Supplier Device Package | R-6 |
| Other | |
| Base Product Number | PR6004 |
| Capacitance @ Vr, F | 140pF @ 4V, 1MHz |
| Diode Type | Standard |
| Mfr | Diodes Incorporated |
| Product Status | Obsolete |
| Reverse Recovery Time (trr) | 150 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
