Elna AmericaJapan

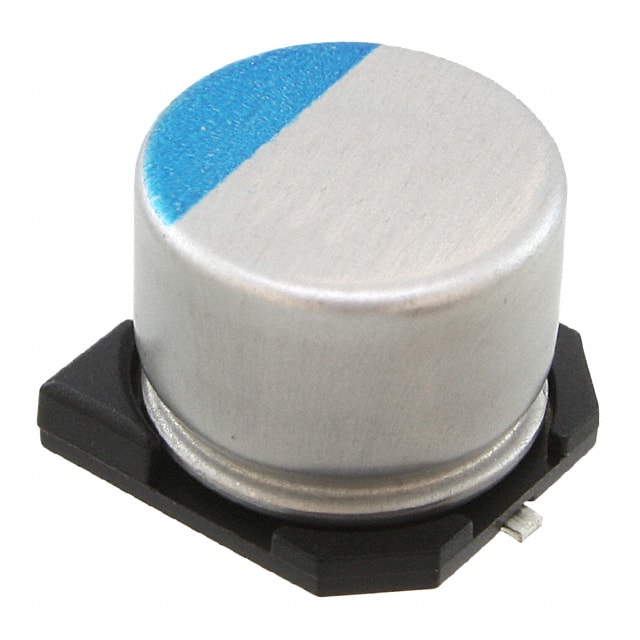

CAP ALUM POLY 150UF 20% 16V SMD
All alternatives
View full reportTechnical parameters
Key specs
Capacitance150 µF
Rated voltage16 V
Tolerance20 %
ESR26 mΩMax
Lifetime2 kh105°C
| Power | |
|---|---|
| Voltage - Rated | 16 V |
| AC and DC characteristics | |
| Ripple Current @ High Frequency | 3.43 A @ 100 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~105°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Surface Mount Land Size | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Other | |
| Applications | General Purpose |
| Capacitance | 150 µF |
| ESR (Equivalent Series Resistance) | 26mOhm |
| Lead Spacing | - |
| Mfr | Elna America |
| Product Status | Active |
| Ratings | - |
| Series | PVH |
| Tolerance | ±20% |
| Type | Polymer |
