SL POWER / Advanced EnergyUnited States

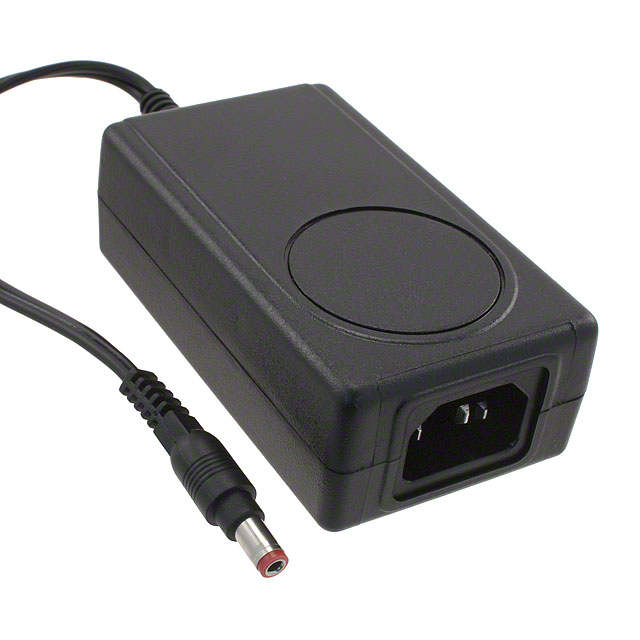

PW173KB0503F01
AC DC Desktop, Wall Power AdaptersAC/DC DESKTOP ADAPTER 5V 20W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage100 ~ 240 V
Output voltage5 V
Output current4 AMax
Power20 WMax
| Power | |
|---|---|
| Current - Output (Max) | 4A |
| No Load Power Consumption | 500mW (Max) |
| Power (Watts) | 20 W |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output | 5V |
| Environment and package | |
| Operating Temperature | 0°C ~ 40°C |
| Size / Dimension | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cULus |
| Cord Length | 70.9" (1.80m) |
| Efficiency | Level IV |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| Manufacturer | SL POWER / Advanced Energy |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Packaging | Box |
| Part Status | Obsolete |
| Polarization | Positive Center |
| Region Utilized | International |
| Series | PW173KB (20-32W) |
| Weight | - |
