onsemiUnited States

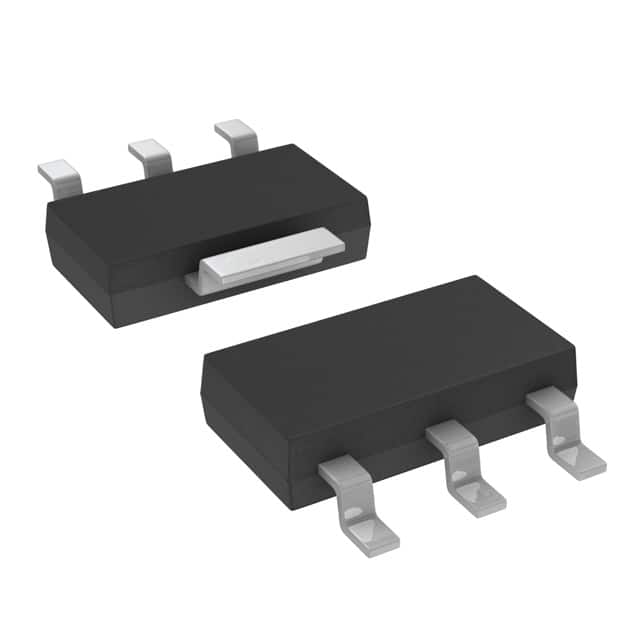

TRANS PNP 450V 0.5A SOT223
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage450 V
Collector current500 mAMax
DC current gain5010mA
Power1.5 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 500 mA |
| Power - Max | 1.5 W |
| Voltage - Collector Emitter Breakdown (Max) | 450 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 10mA, 10V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 (TO-261) |
| Other | |
| Base Product Number | PZTA96 |
| Mfr | onsemi |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 2mA, 20mA |
