MEAN WELL USA Inc.Taiwan, China

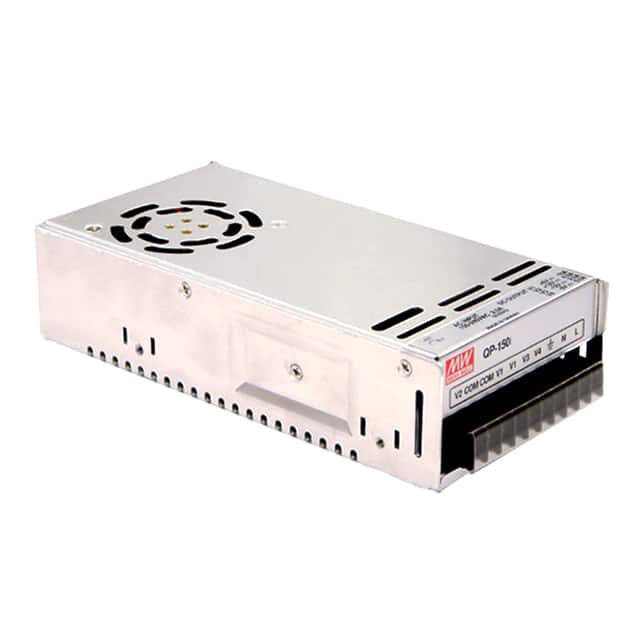

AC/DC CNVRTR 5V +/-15V -5V 153W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage5 V
Output current15 AMax
Power153 WMax
Outputs4
| Power | |
|---|---|
| Current - Output 1 | 15 A |
| Current - Output 2 | 3 A |
| Current - Output 3 | 2 A |
| Current - Output 4 | 600 mA |
| Power (Watts) | 153W |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Voltage - Output 4 | -5V |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -10°C~60°C(WithDerating) |
| Package | Box |
| Size / Dimension | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Base Product Number | QP-150 |
| Efficiency | 75% |
| Features | Adjustable Output, PFC, Universal Input |
| Mfr | MEAN WELL USA Inc. |
| Minimum Load Required | Yes |
| Number of Outputs | 4 |
| Product Status | Active |
| Series | QP-150 (150W) |
| Type | Enclosed |
