Radiall USA, Inc.France

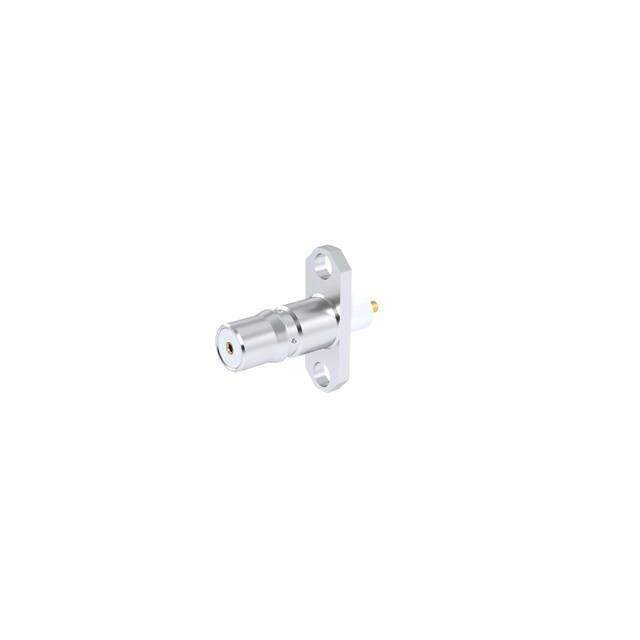

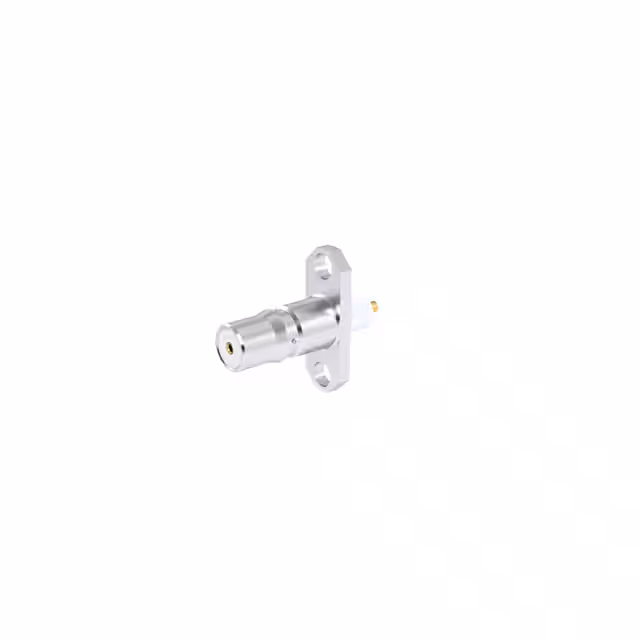

QMA / 2 HOLE FLANGE JACK RECEPTA
All alternatives
View full reportTechnical parameters
Key specs
Connector styleQMA
GenderFemale
Impedance50 Ω
Max frequency6 GHzMax
| Power | |
|---|---|
| Voltage Rating | 500 V |
| AC and DC characteristics | |
| Frequency - Max | 6 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Bulk |
| Other | |
| Base Product Number | R12346 |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | - |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | QMA |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Extended Insulation |
| Housing Color | Gold |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 100 |
| Mfr | Radiall USA, Inc. |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Solder |
Documents
No documents are linked to this part yet.
