Radiall USA, Inc.France

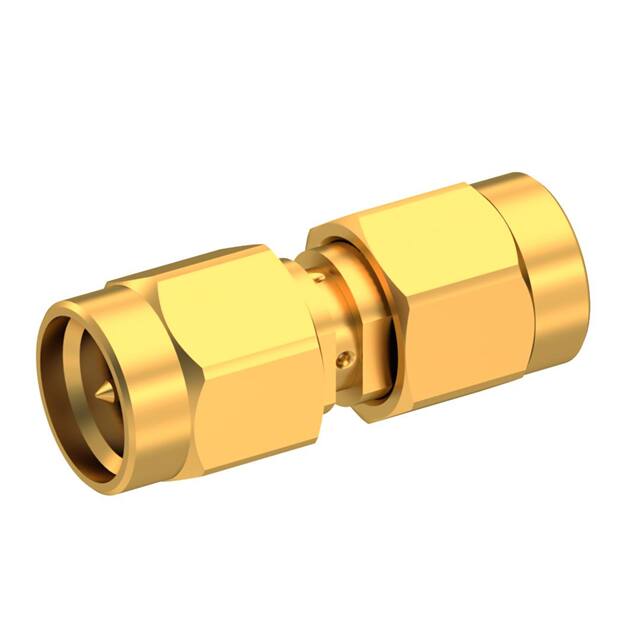

SMA / MALE-MALE ADAPTER
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 18 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C~165°C |
| Package | Box |
| Other | |
| Adapter Series | SMA to SMA |
| Adapter Type | Plug to Plug |
| Base Product Number | R12570 |
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | SMA Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Threaded |
| Features | - |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | Radiall USA, Inc. |
| Product Status | Active |
| Series | - |
| Style | Straight |
