Radiall USA, Inc.France

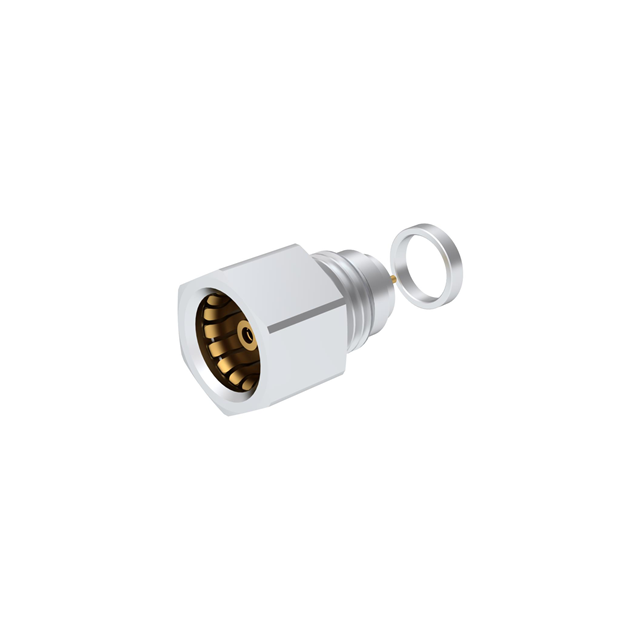

BMA / THREAD-IN JACK RECEPTACLE
All alternatives
View full reportTechnical parameters
Key specs
GenderFemale
Impedance50 Ω
Max frequency22 GHzMax
| Power | |
|---|---|
| Voltage Rating | 500 V |
| AC and DC characteristics | |
| Frequency - Max | 22 GHz |
| Impedance | 50 Ohms |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 165°C |
| Package | Bulk |
| Other | |
| Base Product Number | R12860 |
| Body Finish | - |
| Body Material | Stainless Steel |
| Cable Group | - |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BMA |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | Extended Insulation, Hermetically Sealed |
| Housing Color | Silver |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 1000 |
| Mfr | Radiall USA, Inc. |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Solder |
