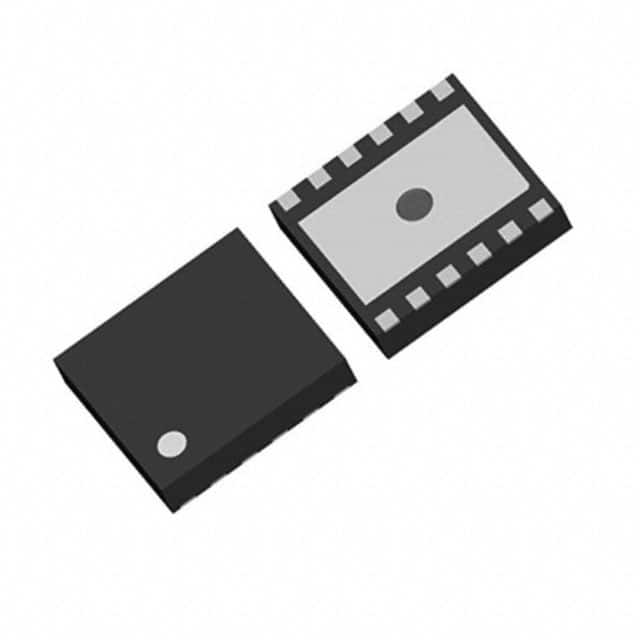

PWM STEP-UP/INVERTING DCDC CONVE
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.3 ~ 5.5 V
Output voltage-4.9 ~ 4.8 V
Output current250 mAMax
Switching frequency1.75 MHz
| Power | |
|---|---|
| Current - Output | 250mA |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Max) | 4.8V |
| Voltage - Output (Min/Fixed) | -4.9V |
| AC and DC characteristics | |
| Frequency - Switching | 1.75MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR) |
| Package / Case | 12-UFDFN Exposed Pad |
| Supplier Device Package | DFN(PLP)2730-12 |
| Other | |
| Base Product Number | R1286 |
| Function | Step-Up/Inverted |
| Mfr | Nisshinbo Micro Devices Inc. |
| Number of Outputs | 2 |
| Output Configuration | Positive and Negative |
| Output Type | Adjustable |
| Product Status | Active |
| Series | R1286K |
| Synchronous Rectifier | Yes |
| Topology | Buck, Boost |
