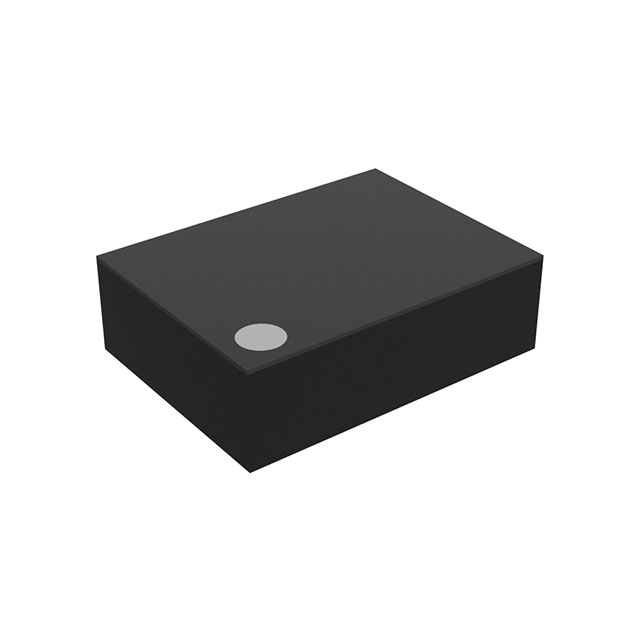

IC REG BUCK BST ADJ DL 12WLCSP
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.5 ~ 5.5 V
Output voltage-5.8 ~ 5.8 V
Output current200 mAMax
Switching frequency1 MHz
| Power | |
|---|---|
| Current - Output | 200mA |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Max) | 5.8V |
| Voltage - Output (Min/Fixed) | -5.8V |
| AC and DC characteristics | |
| Frequency - Switching | 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR) |
| Package / Case | 12-VFBGA, WLCSP |
| Supplier Device Package | WLCSP-12-P1 |
| Other | |
| Base Product Number | R1287 |
| Function | Step-Up/Inverted |
| Mfr | Nisshinbo Micro Devices Inc. |
| Number of Outputs | 2 |
| Output Configuration | Positive and Negative |
| Output Type | Adjustable |
| Product Status | Active |
| Series | R1287x |
| Synchronous Rectifier | Yes |
| Topology | Buck, Boost |
