Radiall USA, Inc.France

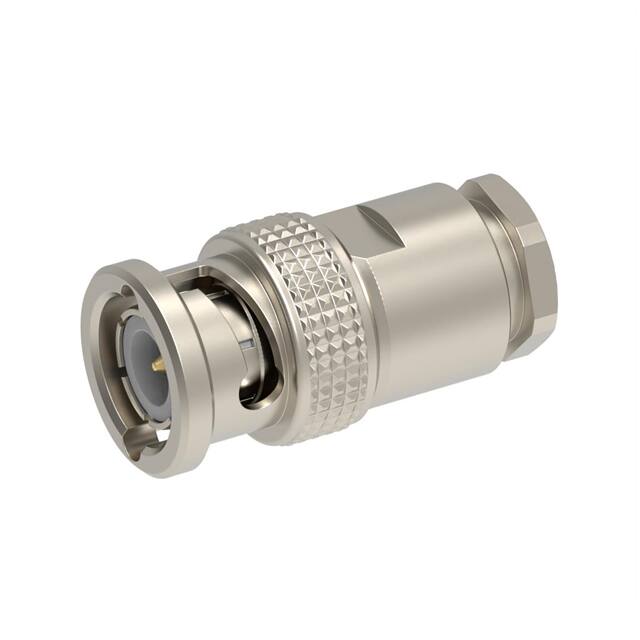

BNC / STRAIGHT PLUG CLAMP TYPE C
All alternatives
View full reportTechnical parameters
Key specs
Connector styleBNC
GenderMale
Impedance50 Ω
Max frequency4 GHzMax
| Power | |
|---|---|
| Voltage Rating | 500 V |
| AC and DC characteristics | |
| Frequency - Max | 4 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C~165°C |
| Package | Bulk |
| Other | |
| Base Product Number | R14100 |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | PPD |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Features | - |
| Housing Color | Silver |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | Radiall USA, Inc. |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Clamp |
