Radiall USA, Inc.France

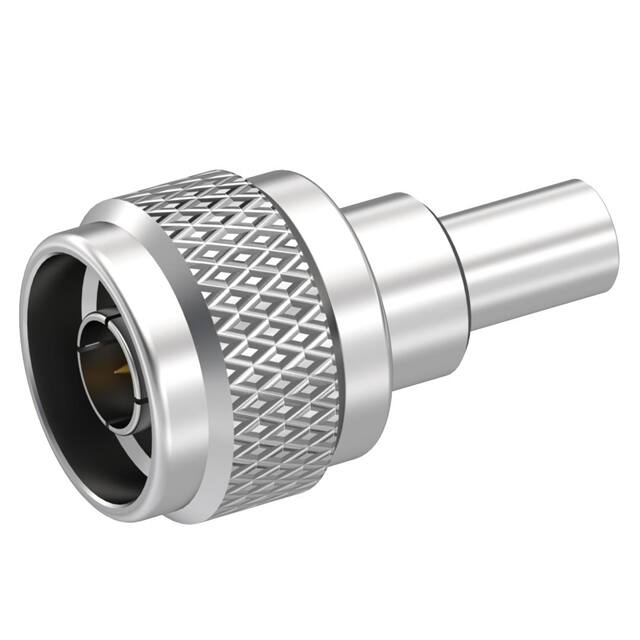

N / STRAIGHT PLUG FULL CRIMP-TYP
All alternatives
View full reportTechnical parameters
Key specs
Connector styleType N
GenderMale
Impedance75 Ω
Max frequency1.5 GHzMax
| Power | |
|---|---|
| Voltage Rating | 850 V |
| AC and DC characteristics | |
| Frequency - Max | 1.5 GHz |
| Impedance | 75Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C~155°C |
| Package | Bulk |
| Other | |
| Base Product Number | R16208 |
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | RG-59 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |
| Includes | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insertion Loss | 0.15dB |
| Mating Cycles | 500 |
| Mfr | Radiall USA, Inc. |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Crimp |
