Micro Commercial CoUnited States

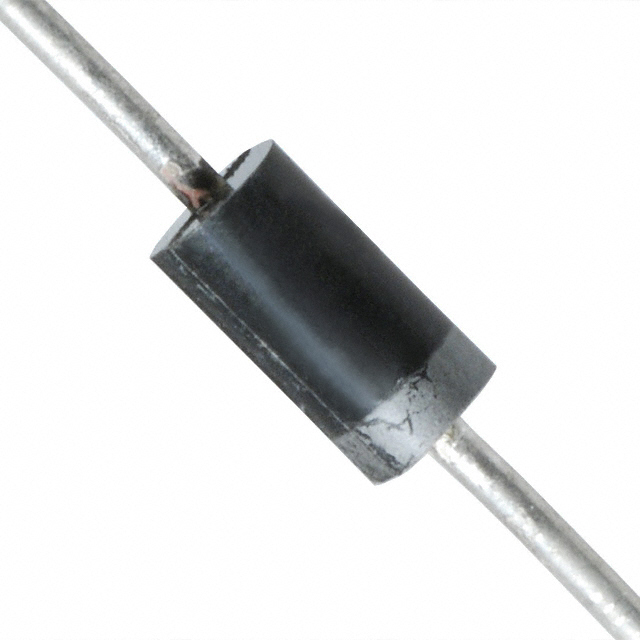

DIODE GEN PURP 1.8KV 500MA DO41
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage1.8 kV
Average rectified current500 mA
Forward voltage2.4 VMax · 500 mA
TypeStandardFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 500mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 1800 V |
| Voltage - DC Reverse (Vr) (Max) | 1800 V |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 500 mA |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Package | Tape & Reel (TR) |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Other | |
| Base Product Number | R1800 |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz |
| Mfr | Micro Commercial Co |
| Product Status | Obsolete |
| Reverse Recovery Time (trr) | 500 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Standard |
