Jonard ToolsUnited States

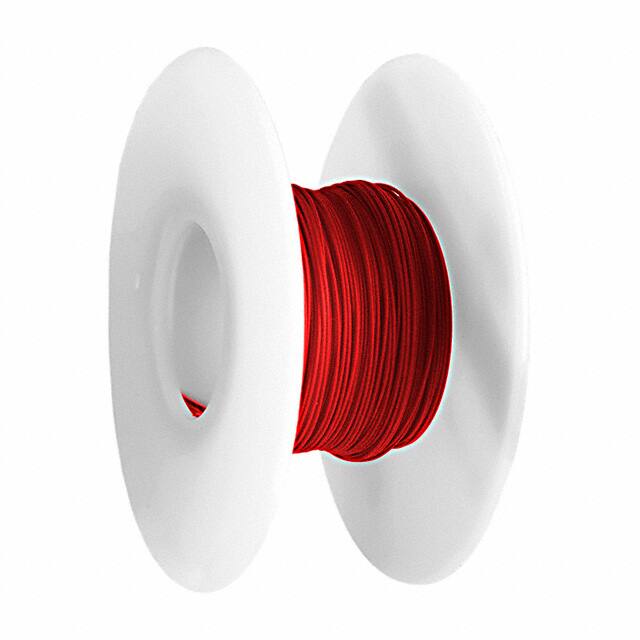

WIRE WW 28AWG PVDF RED 100'
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating Temperature | 105°C |
| Package | Roll |
| Other | |
| Base Product Number | R28R |
| Conductor Diameter | 0.013" (0.32mm) |
| Conductor Material | Copper, Bare |
| Conductor Plating | Silver |
| Features | - |
| Jacket Color | Red |
| Jacket (Insulation) Diameter | 0.023" (0.58mm) |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Jacket (Insulation) Thickness | 0.005" (0.13mm) |
| Length | 100' (30.5m) |
| Mfr | Jonard Tools |
| Product Status | Active |
| Ratings | UL Style 1422 |
| Series | - |
| Wire Gauge | 28 AWG |
Documents
No documents are linked to this part yet.
