General-Purpose MPU with Dual-Core Arm Cortex-A55 CPUs and Single-Core Cortex-M33 CPU with 3D Graphics and Video Codec Engine
All alternatives
View full reportTechnical parameters
Key specs
CoreCORTEX-A55
| Power | |
|---|---|
| Power-On Reset | No |
| Supply Voltage (V) | 2.97 - 3.63 |
| Environment and package | |
| Bit Size | 64 |
| Pkg. Dimensions (mm) | 15 x 15 x 1.4 |
| Temp. Range (°C) | Ta = -40 to +85 |
| Other | |
| 12-Bit Timer (ch) | 0 |
| 2D Drawing Engine | No |
| 32-Bit Timer (ch) | 12 |
| 3D GPU | Arm Mali-G31 |
| 8-Bit Timer (ch) | 0 |
| Accelerator | Video Codec |
| ADC | 12-bit x 8-ch |
| Bit Length | 64 |
| CAN (ch) | 2 |
| CAN-FD (ch) | 2 |
| Carrier Type | Bulk (Tray) |
| Country of Assembly | TAIWAN |
| CPU | Cortex-A55 x 1 + Cortex-M33 x 1 |
| CPU Architecture | Arm |
| Data Flash (KB) | 0 |
| Debug Interface | JTAG/SWD |
| DMA | Yes |
| DMA (ch) | 32 |
| DMAC or DTC | DMAC |
| DRAM I/F | DDR3L-1333, DDR4-1600 (16-bit) |
| DTC (ch) | 0 |
| ECC SRAM | Yes |
| EtherCat (ch) (#) | 0 |
| Ethernet | 10/100M/1G x 2 ch |
| Ethernet (ch) | 2 |
| Ethernet speed | 10M/100M/1G |
| Family Name | RZ |
| Floating Point Unit | Double |
| Group Name | G2L |
| I2C (#) | 4 |
| I3C (ch) | 0 |
| Image Codec | H.264 enc/dec |
| I/O Ports | 123 |
| IrDA | No |
| Lead Compliant | Yes |
| Lead Count (#) | 456 |
| Length (mm) | 15 |
| LIN (#) | 0 |
| Longevity | 2032 Jul |
| LVD or PVD | No |
| Main CPU | Cortex-A55 x 1 + Cortex-M33 x 1 |
| MOQ | 1 |
| NPU | No |
| On-chip Oscillator | No |
| OPAMP (ch) (#) | 0 |
| OSPI (ch) | 1 |
| Pb (Lead) Free | Yes |
| PGA (ch) | 0 |
| Pitch (mm) | 0.5 |

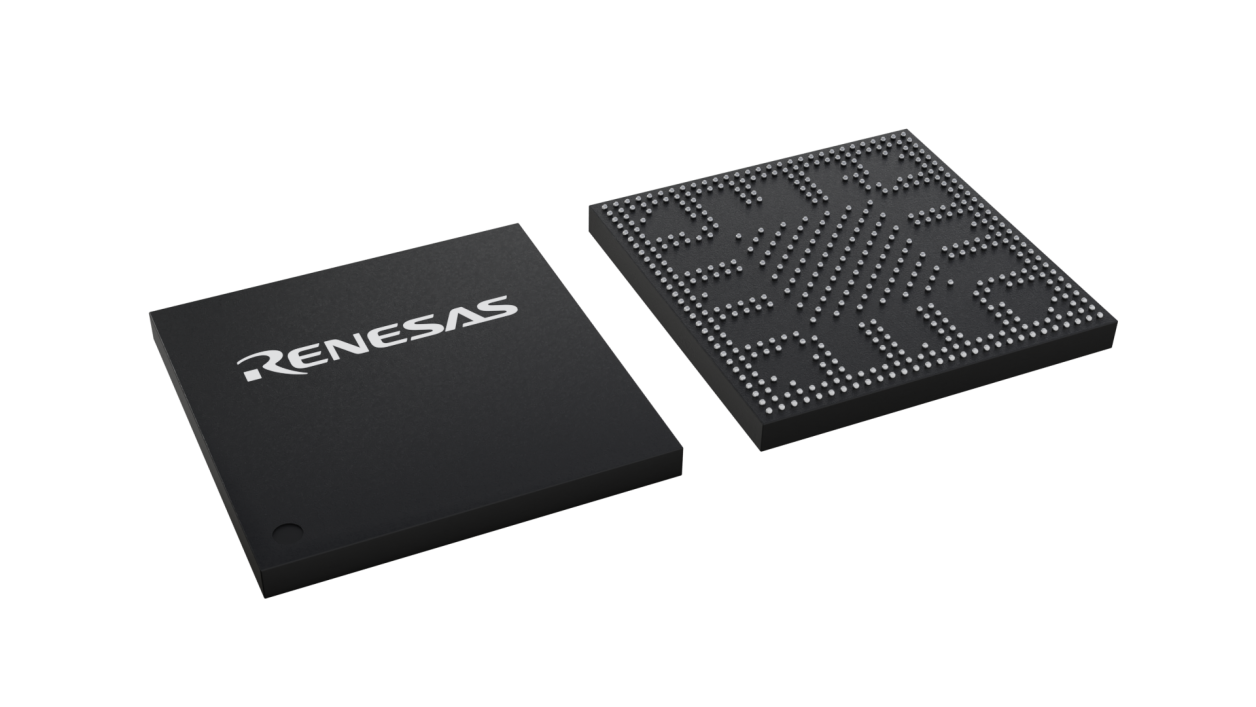

| Pkg. Type | LFBGA |
| Price (USD) | $12.74818 |
| Program Memory (KB) | 0 |
| PWM Output (pin#) | 0 |
| QSPI (ch) | 0 |
| RAM (KB) | 128 |
| RTC | No |
| SCI or UART (ch) | 7 |
| SDHI (ch) | 2 |
| Series Name | RZ/G |
| SPI (ch) | 3 |
| SSI (ch) | 4 |
| Sub CPU | Cortex-M33 |
| Suggested Kits | RZ/G2L-EVKIT |
| Tape & Reel | No |
| Thickness (mm) | 1.4 |
| Timer | 16-bit x 8-ch, 32-bit x 1-ch |
| USB | USB2.0 ×2 ch (1H. 1H/F/OTG) |
| USBFS (ch) | 1 |
| USBHS (ch) | 1 |
| USB MCU/ USB ASSP | - |
| USB Ports (#) | 2 |
| USB Remarks | - |
| Watchdog Timer (ch) | 3 |
| Width (mm) | 15 |
| Wireless | No |
