Rohm SemiconductorJapan
DIODE SCHOTTKY 60V 1A PMDU
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage60 V
Average rectified current1 A
Forward voltage550 mVMax · 1 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 1A |
| Current - Reverse Leakage @ Vr | 50 µA @ 60 V |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150°C(Max) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

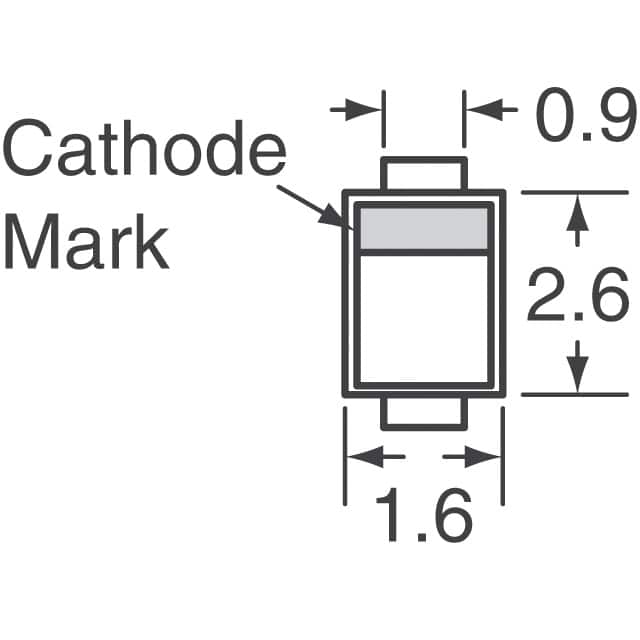

| Package / Case | SOD-123F |
| Supplier Device Package | PMDU |
| Other | |
| Base Product Number | RB160M-60 |
| Capacitance @ Vr, F | 40pF @ 10V, 1MHz |
| Diode Type | Schottky |
| Mfr | Rohm Semiconductor |
| Product Status | Not For New Designs |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
