Nexperia USA Inc.Netherlands

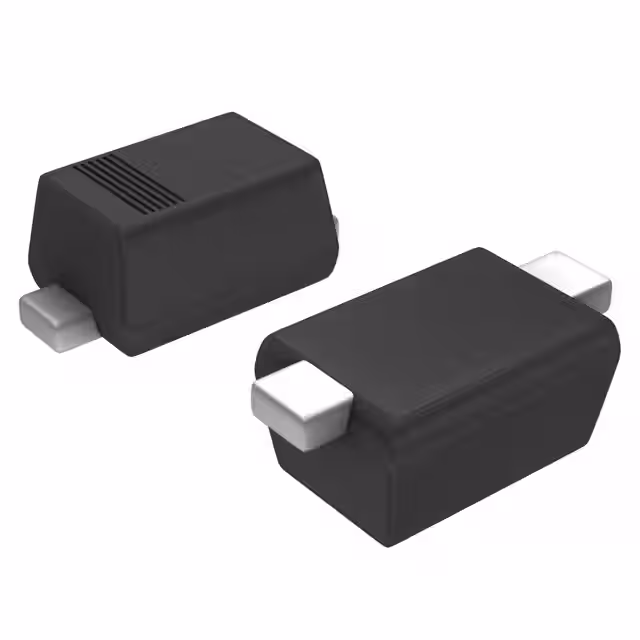

DIODE SCHOTTKY 30V 200MA SOD523
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage30 V
Average rectified current200 mA
Forward voltage600 mVMax · 200 mA
TypeSchottkySmall Signal =< 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 200mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 10 V |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 200 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150°C(Max) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Other | |
| Base Product Number | RB520S30 |
| Capacitance @ Vr, F | 20pF @ 1V, 1MHz |
| Diode Type | Schottky |
| Mfr | Nexperia USA Inc. |
| Product Status | Active |
| Series | Automotive, AEC-Q100 |
| Speed | Small Signal =< 200mA (Io), Any Speed |
