View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Impedance | 50 Ohms |
| Environment and package | |
| Operating Temperature | -40°C ~ 80°C |
| Other | |

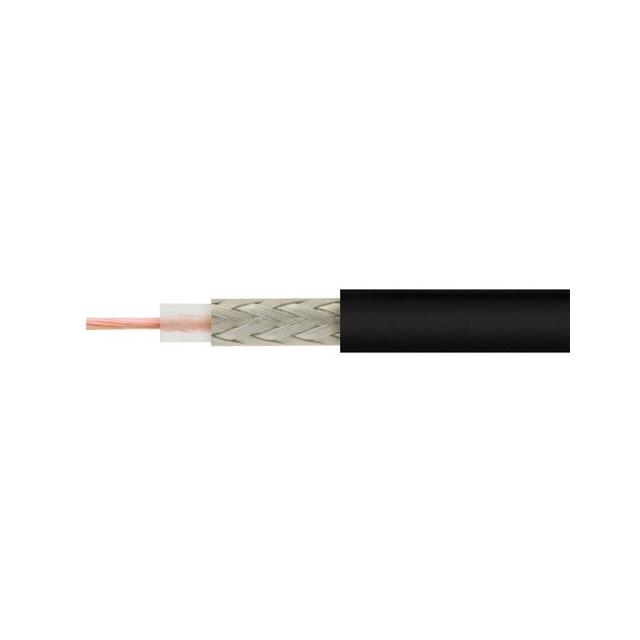

| Cable Group | RG-174 |
| Cable Type | Coaxial |
| Conductor Material | Steel, Copper Coated |
| Conductor Strand | - |
| Dielectric Diameter | 0.060" (1.52mm) |
| Dielectric Material | Polyethylene (PE) |
| Features | - |
| Jacket Color | Black |
| Jacket (Insulation) Diameter | 0.110" (2.79mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | - |
| Manufacturer | Fairview Microwave |
| Packaging | Bag |
| Part Status | Active |
| Series | - |
| Shield Coverage | - |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Usage | - |
| VoP, Velocity of Propagation | 66.0 |
| Wire Gauge | - |
