Richtek USA Inc.Taiwan, China

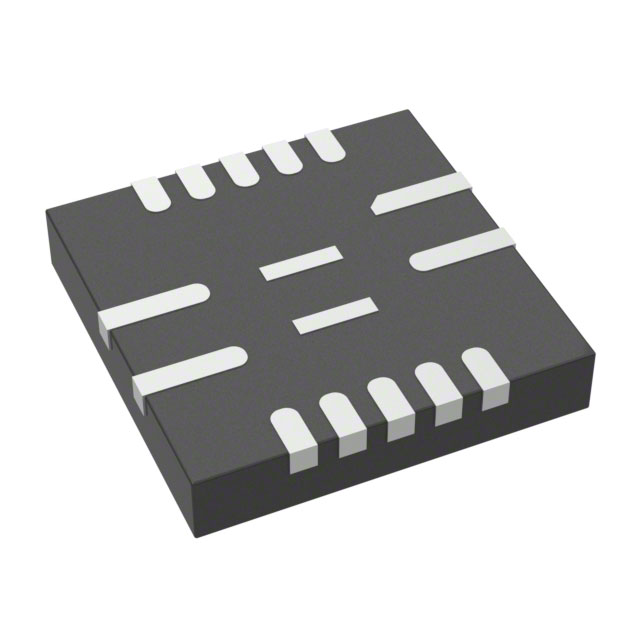

IC REG BUCK ADJ 6A 16UQFN
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 23 V
Output voltage600 mV ~ 5 V
Output current6 AMax
Switching frequency500 kHz
| Power | |
|---|---|
| Current - Output | 6A |
| Voltage - Input (Max) | 23V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| AC and DC characteristics | |
| Frequency - Switching | 500kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 16-UFQFN |
| Supplier Device Package | 16-UQFN (3x3) |
| Other | |
| Base Product Number | RT6220 |
| Function | Step-Down |
| Mfr | Richtek USA Inc. |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Series | ACOT™ |
| Synchronous Rectifier | Yes |
| Topology | Buck |
