Richtek USA Inc.Taiwan, China

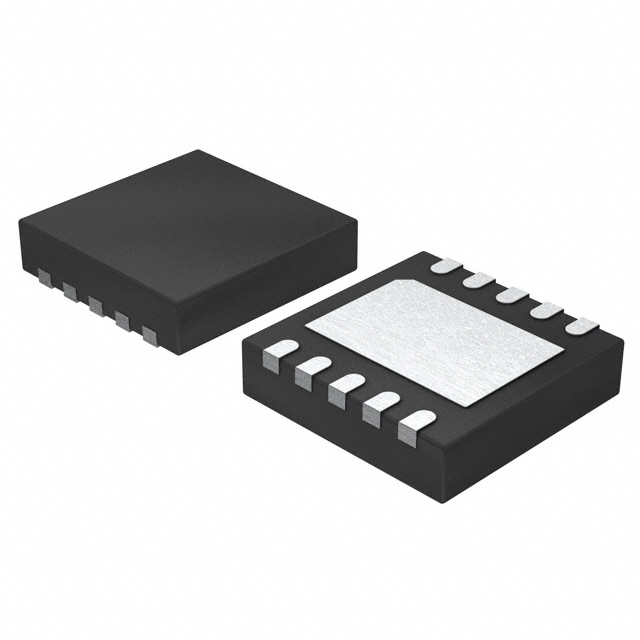

IC REG BUCK ADJ 2A 10WDFN
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.6 ~ 5.5 V
Output voltage600 mV ~ 5 V
Output current2 AMax
Switching frequency1.2 MHz
| Power | |
|---|---|
| Current - Output | 2A |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.6V |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| AC and DC characteristics | |
| Frequency - Switching | 1.2MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WDFN (3x3) |
| Other | |
| Base Product Number | RT8058 |
| Function | Step-Down |
| Mfr | Richtek USA Inc. |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Buck |
