SWITCH ROTARY DIP SP4T 100MA 5V
All alternatives
View full reportTechnical parameters
Key specs
Current rating100 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 100mA |
| Voltage Rating | 5VDC |
| Environment and package | |

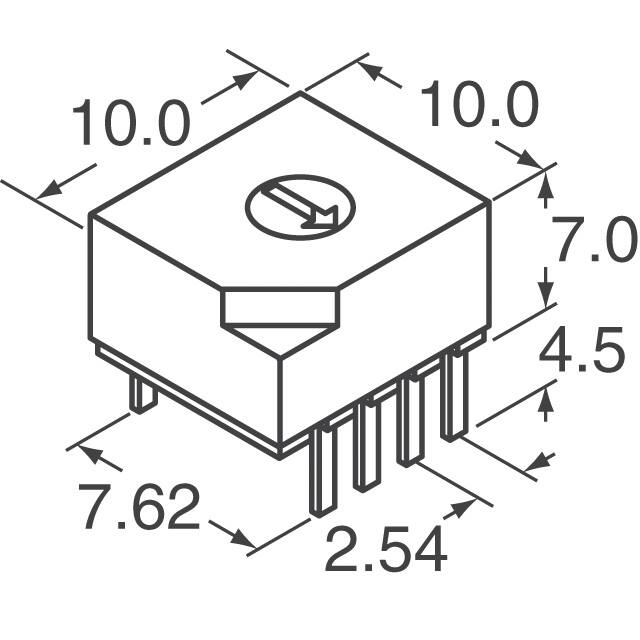

| Height Above Board | 0.275" (6.99mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C~70°C |
| Package | Bulk |
| Other | |
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Polybutylene Terephthalate (PBT) |
| Circuit | SP4T |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Electrical Life | 500 Cycles |
| Features | - |
| Length | 0.394" (10.00mm) |
| Mechanical Life | - |
| Mfr | Nidec Copal Electronics |
| Number of Positions | 4 |
| Pitch | 0.100" (2.54mm), Full |
| Product Status | Active |
| Series | S-2050 |
| Termination Style | PC Pin |
| Washable | Yes |
