SMC Diode SolutionsUnited States

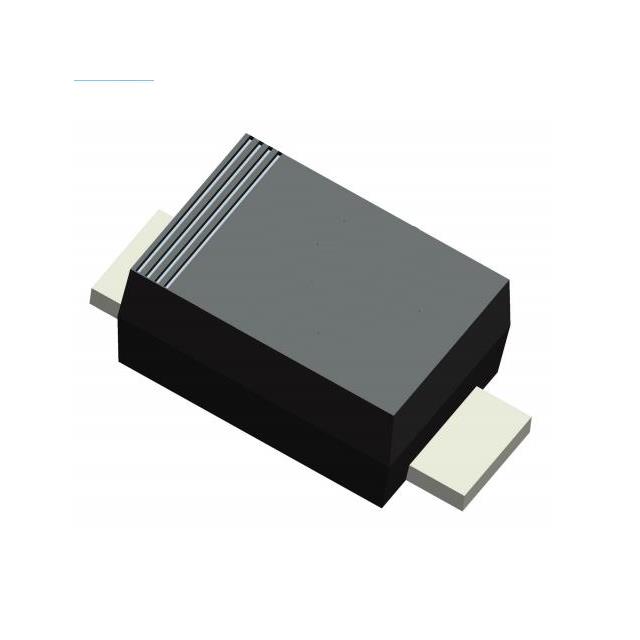

DIODE SCHOTTKY 250V 1A SMAF
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage250 V
Average rectified current1 A
Forward voltage920 mVMax · 1 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 1A |
| Current - Reverse Leakage @ Vr | 50 µA @ 250 V |
| Voltage - DC Reverse (Vr) (Max) | 250 V |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 1 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Package | Tape & Reel (TR) |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAF |
| Other | |
| Base Product Number | S125 |
| Capacitance @ Vr, F | 28pF @ 4V, 1MHz |
| Mfr | SMC Diode Solutions |
| Product Status | Obsolete |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
