MDDGermany
Diodes 二极管 · general rectifiers
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Max.Aver. Fwd.Current l(AV) | 1 |
| Max.Fwd.Voltage TA=25℃ l F (A) | 1 |
| Max.Fwd.Voltage TA=25℃ V F (V) | 1.1 |
| Maximum Reverse Current TA=25℃ I R (μA) | 5 |
| Max.Reverse Voltage V RRM (V) | 100 |
| Peak Fwd. Surge Current I FSM (A) | 30 |
| Environment and package | |
| Junction Temperature | -55 ~ +150 |
| 封装类型 | SMAF |
| Other | |
| 数量 函数 | Single |

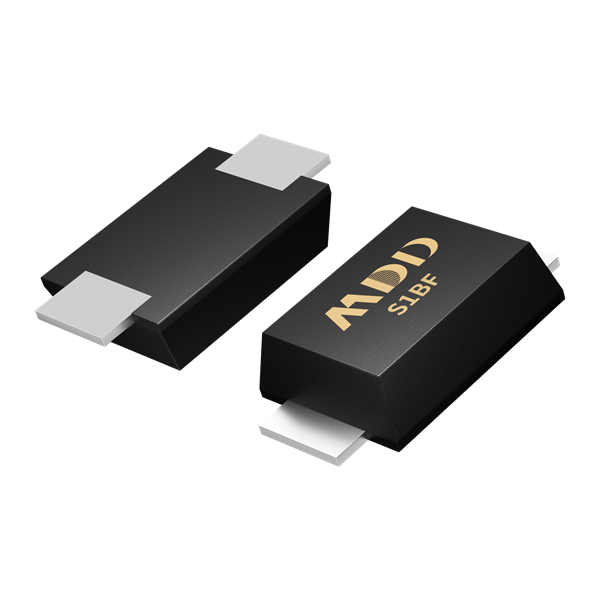

| 零件编号 | S1BF |
