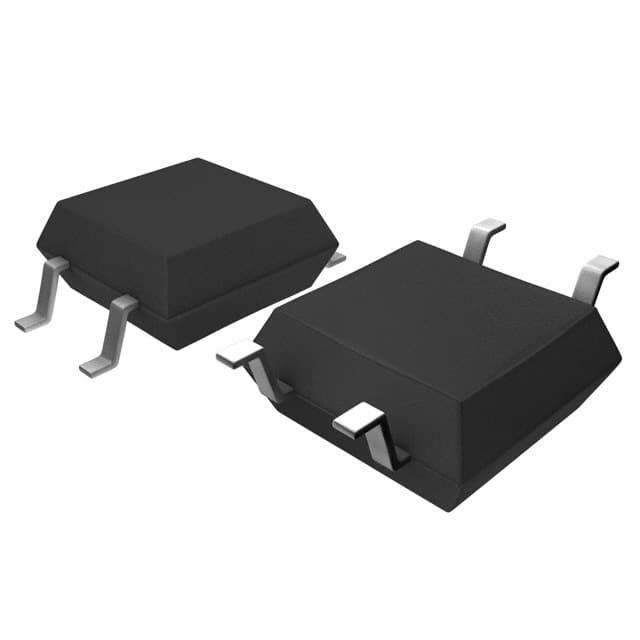

OPTOISOLATOR 3.75KV TRIAC 4SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Hold (Ih) | 3.5mA |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - On State (It (RMS)) (Max) | 50 mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 600 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C~100°C |
| Package | Tube |
| Package / Case | 4-SMD |
| Supplier Device Package | 4-SMD |
| Other | |
| Approval Agency | CSA, UR, VDE |
| Base Product Number | S2S3L |
| Mfr | SHARP/Socle Technology |
| Output Type | Triac |
| Product Status | Obsolete |
| Series | - |
| Static dV/dt (Min) | 100V/µs |
| Turn On Time | 100µs (Max) |
| Zero Crossing Circuit | No |
