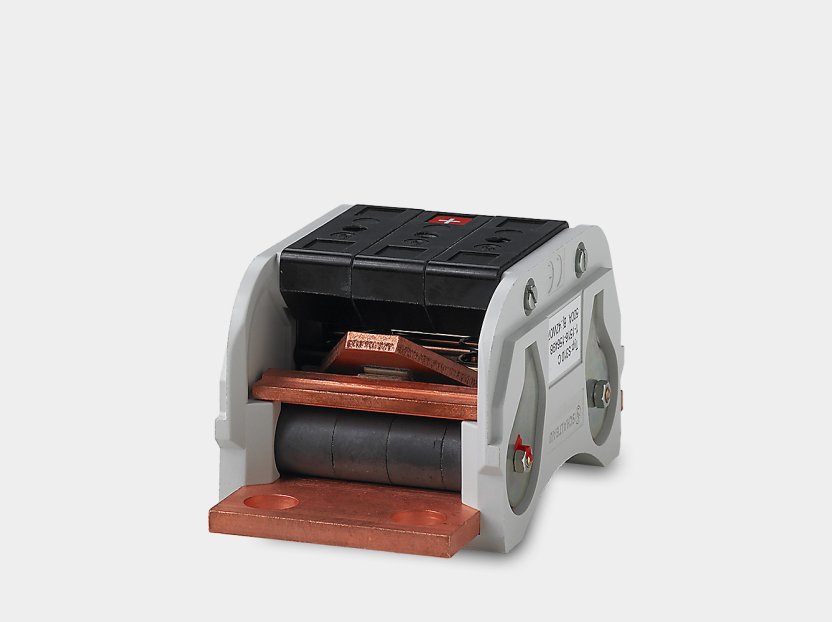

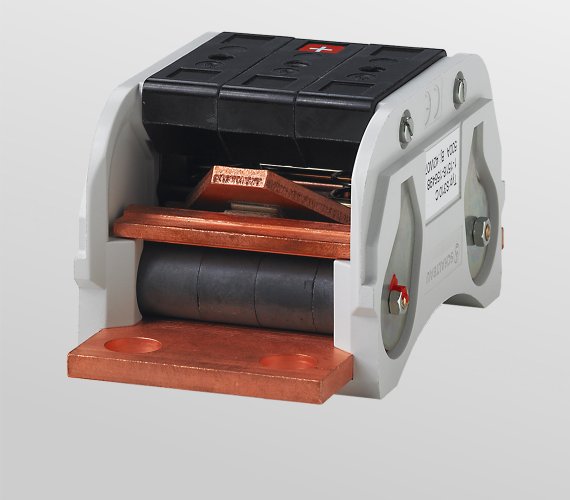

The S310 single-pole cam-operated switching elements are suitable for applications with a conv. thermal current of up to 500 A AC or DC (with permanent magnetic blowout).
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Nominal voltage U n | 300 V |
| Rated insulation voltage U i | 630 V |
| Type of voltage | DC, AC |
| Environment and package | |
| Conv. thermal current I th | 500 A |
| Other | |
| Main contacts, configuration | 1 x NC |
| Mechanical endurance | > 2 million operating cycles |
