Yangjie TechnologyChina
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|

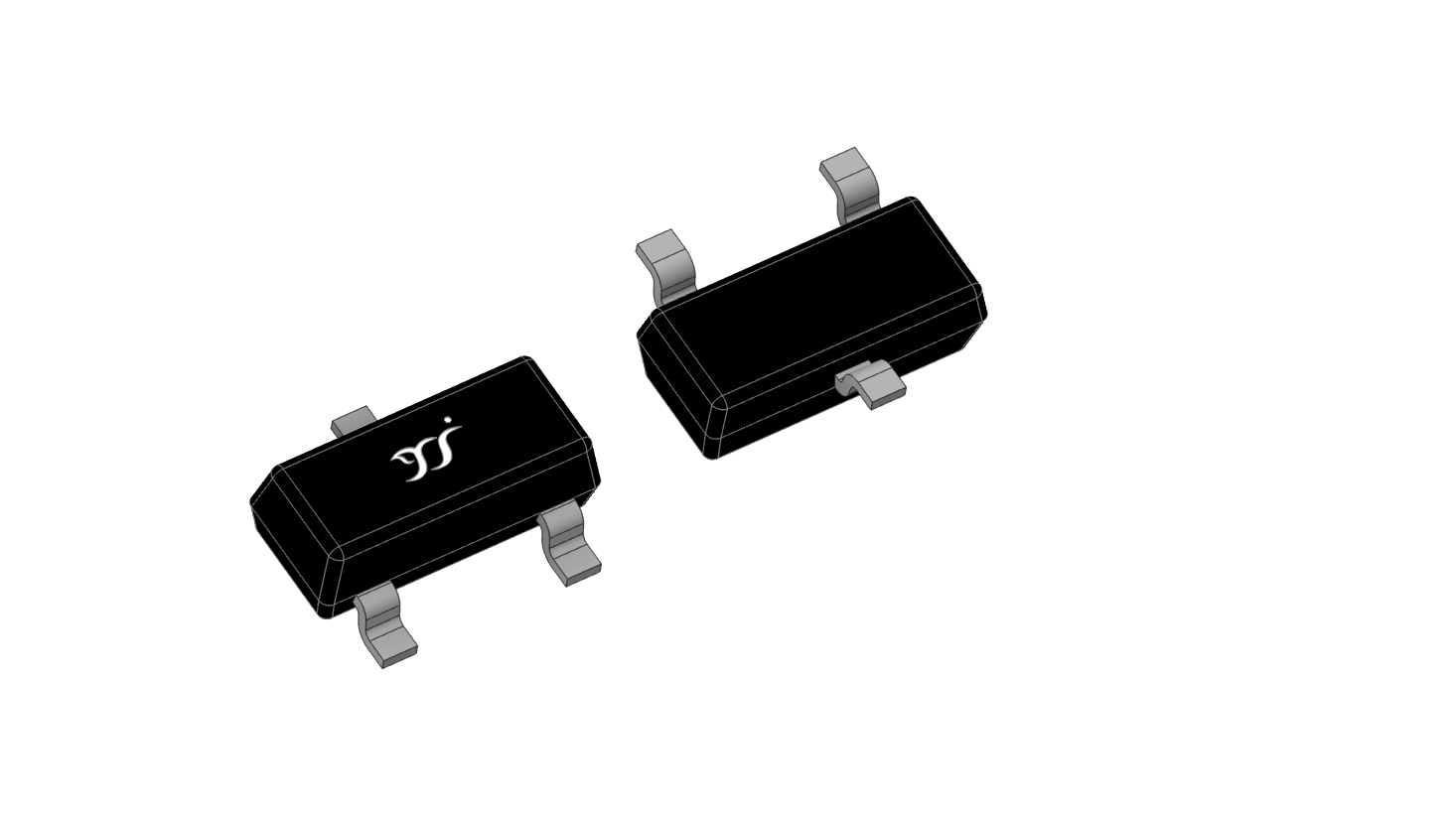

| Package | SOT-23 |
| Other | |
| BVCBO(V) | -40 |
| BVCEO(V) | -25 |
| BVEBO(V) | -5 |
| Ft(MHz) | 150 |
| HFE_Max | 200 |
| HFE_Min | 120 |
| IB(mA) | -50 |
| @Ic(mA) | -50 |
| IC(mA) | -500 |
| IC(mA)_ | -500 |
| PCM(mW) | 300 |
| Status | Active |
| Type | PNP |
| VCE(sat)(V) | -0.6 |
| Vce(V) | -1 |
