onsemiUnited States

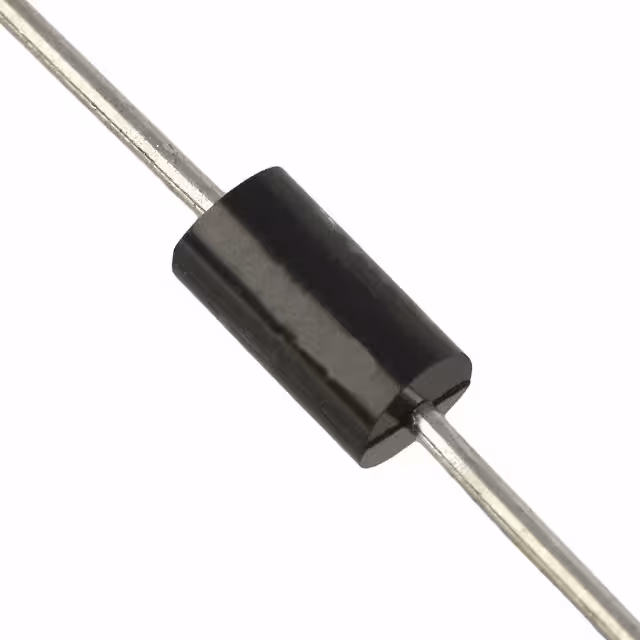

TVS DIODE 54VWM 87.1VC DO15
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage54 V
Breakdown voltage60 V
Clamping voltage87.1 VMax
Peak pulse power500 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 5.7A |
| Power Line Protection | No |
| Power - Peak Pulse | 500W |
| Voltage - Breakdown (Min) | 60V |
| Voltage - Clamping (Max) @ Ipp | 87.1V |
| Voltage - Reverse Standoff (Typ) | 54V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Tape & Reel (TR) |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-15 |
| Other | |
| Applications | General Purpose |
| Base Product Number | SA54 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Type | Zener |
