Littelfuse Inc.United States

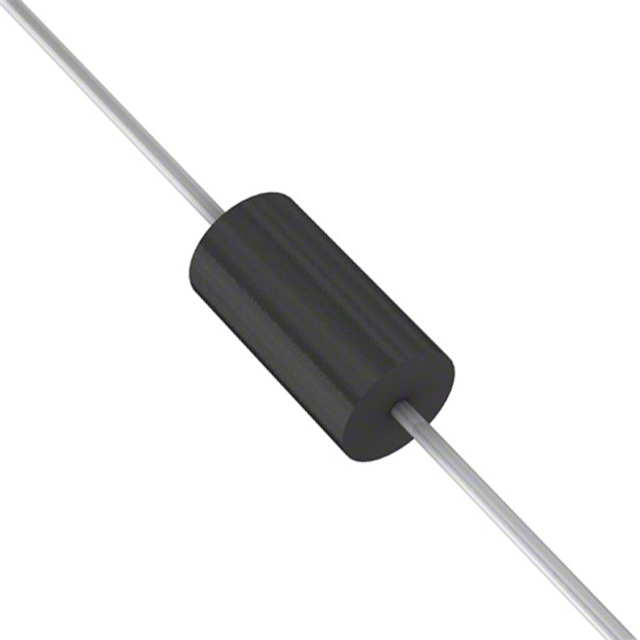

TVS DIODE 64VWM 103VC DO204AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage64 V
Breakdown voltage71.1 V
Clamping voltage103 VMax
Peak pulse power500 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 5A |
| Power Line Protection | No |
| Power - Peak Pulse | 500W |
| Voltage - Breakdown (Min) | 71.1V |
| Voltage - Clamping (Max) @ Ipp | 103V |
| Voltage - Reverse Standoff (Typ) | 64V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | SA |
| Type | Zener |
