SMC Diode SolutionsUnited States

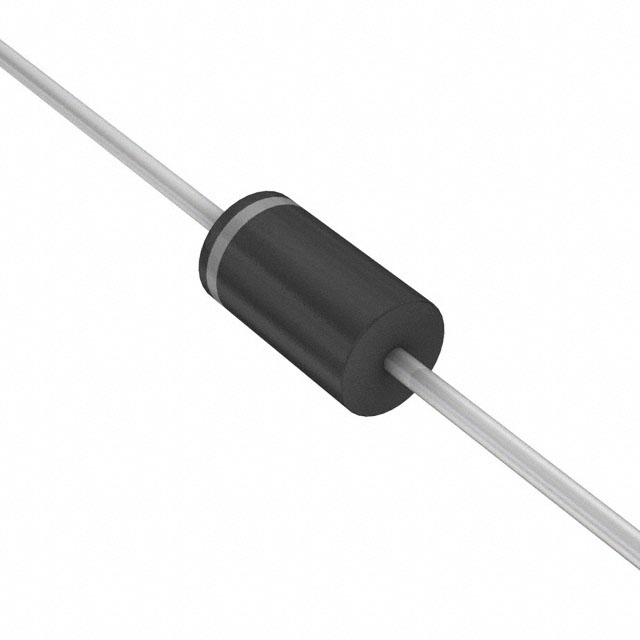

DIODE SCHOTTKY 150V 10A DO201AD
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage150 V
Average rectified current10 A
Forward voltage1.05 VMax · 10 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 10A |
| Current - Reverse Leakage @ Vr | 1 mA @ 150 V |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 10 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -50°C~150°C |
| Package | Cut Tape (CT); Tape & Box (TB) |
| Package / Case | DO-201AD, Axial |
| Supplier Device Package | DO-201AD |
| Other | |
| Base Product Number | SB10150 |
| Capacitance @ Vr, F | - |
| Diode Type | Schottky |
| Mfr | SMC Diode Solutions |
| Product Status | Active |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
