Signal TransformerUnited States

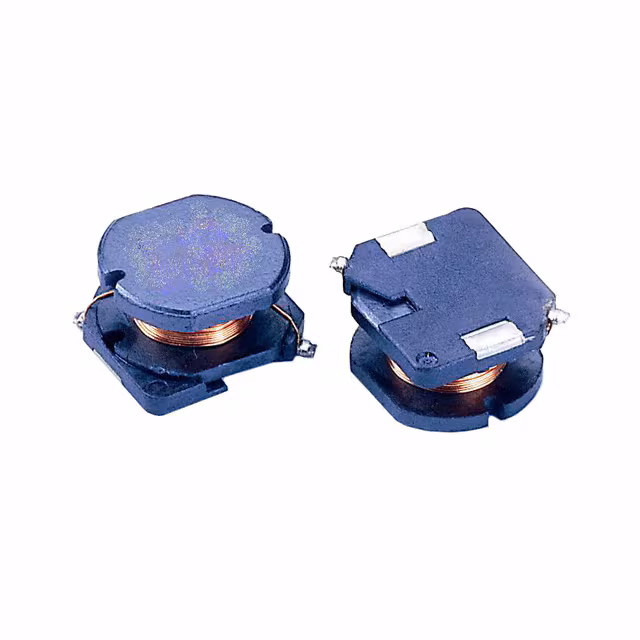

FIXED IND 10UH 3.5A 60 MOHM SMD
All alternatives
View full reportTechnical parameters
Key specs
Inductance10 µH
Rated current3.5 AMax
Saturation current2.6 AMax
DC resistance60 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | 2.6A |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 2.52 MHz |
| Environment and package | |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.429" L x 0.386" W (10.90mm x 9.80mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 60mOhm Max |
| Inductance | 10 µH |
| Material - Core | - |
| Mfr | Signal Transformer |
| Product Status | Obsolete |
| Q @ Freq | - |
| Ratings | - |
| Series | SC105B |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Type | Wirewound |
