Song Chuan(松川)China
10A general purpose Power Relay.; Contact rating up to 12A 250VAC (DPNO).; Epoxy sealed type and flux free.
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage6 ~ 120 V
| Power | |
|---|---|
| Coil voltage | DC | 6 ~ 120V |
| Max. Allowable Contact current(A) | 10A |
| Power consumption | DC | 0.9W |
| Other | |
| 1. | SCL | — | Basic series designation |
| 2. | Blank | — | Quick terminal |
| 3. | Blank | — | Without special features |
| 4. | DPDT | — | Double pole double throw |
| 5. | Blank | — | Standard type |
| 6. | Blank | — | Straight cover |
| 7. | □ | — | Coil voltage (please refer to the coil rating data for the availability) |
| AC | 12 ~ 240V |
| Contact and coil | 1500VAC |
| Contact circuits | 1500VAC |
| Contact configuration | 2A, 2C |
| Contact rating | Resistive load | 10A 240VAC, 10A 28VDC |
| Dielectric strength | Open contact | 1000VAC |
| Electrical(Min.) | 1×105 |
| Life expectancy | Mechanical(Min.) | 1×107 |

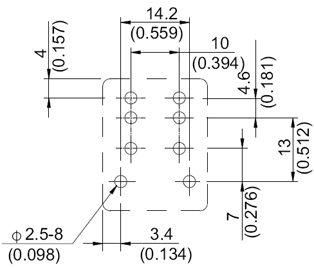

| Outline (L×W×H) mm | 27.5 × 21.5 × 35.2 |
| SCL | – | □ | – | □ | – | DPDT | – | □ | – | □ | | □ |
