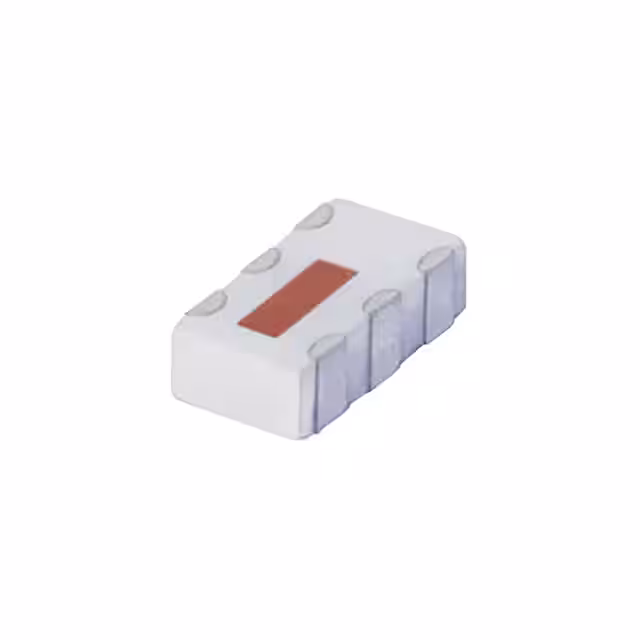

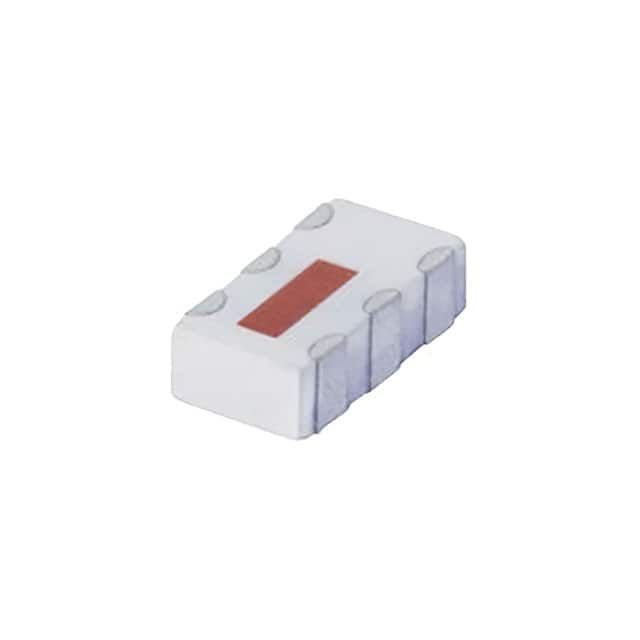

RF PWR DVDR 600MHZ-1GHZ 6SMD
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency | 600 MHz ~ 1 GHz |
| Environment and package | |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.063" W x 0.042" H (3.20mm x 1.60mm x 1.07mm) |
| Other | |
| Insertion Loss | 0.5dB |
| Mfr | Mini-Circuits |
| Product Status | Active |
| Series | - |
| Specifications | Isolation (Min) 11dB, 19dB Return Loss, 3° Imbalance (Max) |
