Signal TransformerUnited States

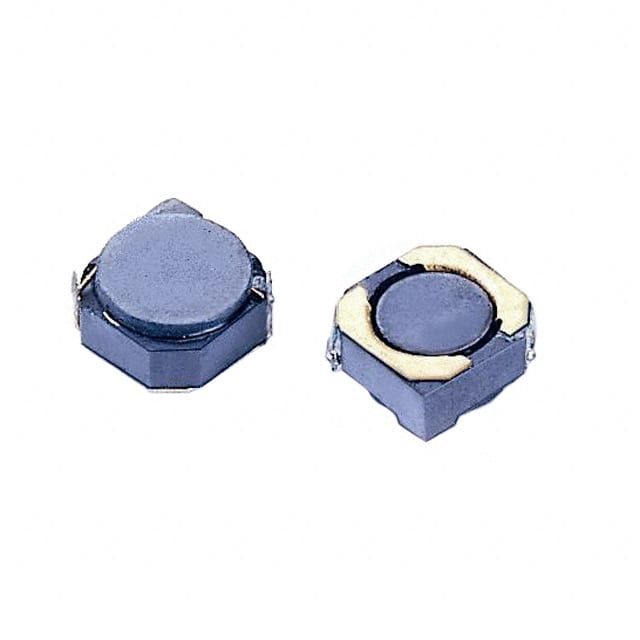

FIXED IND 4.7UH 1.41A 105MOHM SM
All alternatives
View full reportTechnical parameters
Key specs
Inductance4.7 µH
Rated current1.41 AMax
Saturation current900 mAMax
DC resistance105 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 1.41 A |
| Current - Saturation (Isat) | 900mA |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Nonstandard |
| Size / Dimension | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 105mOhm Max |
| Inductance | 4.7 µH |
| Material - Core | - |
| Mfr | Signal Transformer |
| Product Status | Obsolete |
| Q @ Freq | - |
| Ratings | - |
| Series | SCRH3D16A |
| Shielding | Shielded |
| Tolerance | ±30% |
| Type | - |
