Peerless by TymphanyUnited States

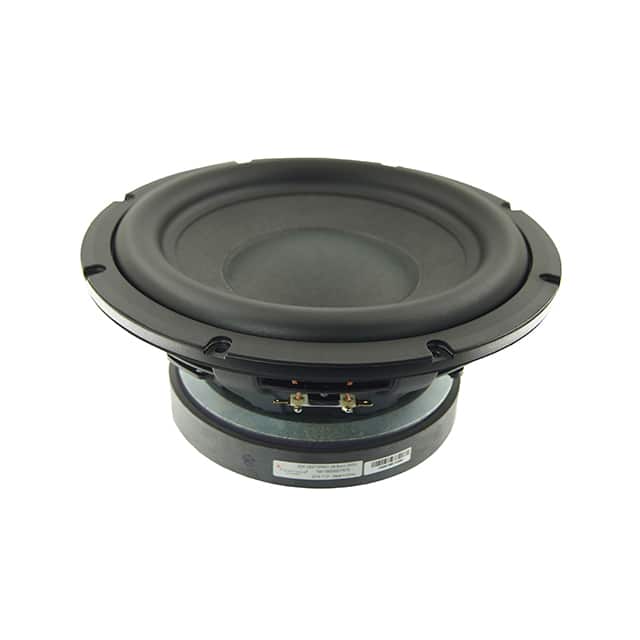

SPEAKER 4.92 OHM 300W TOP 86.6DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Rated | 300 W |
| AC and DC characteristics | |
| Frequency Range | 25 Hz ~ 400 kHz |
| Frequency - Self Resonant | 33.50Hz |
| Impedance | 4.92 Ohms |
| Environment and package | |
| Height - Seated (Max) | 5.433" (138.00mm) |
| Package | Bulk |
| Size / Dimension | 10.598" Dia (269.20mm) |
| Other | |
| Efficiency - dBA | 86.60 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Ingress Protection | - |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Mfr | Peerless by Tymphany |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | - |
| Series | SDF |
| Shape | Round |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Subwoofer |
Documents
No documents are linked to this part yet.
