Isocom Components 2004 LTDUnited Kingdom

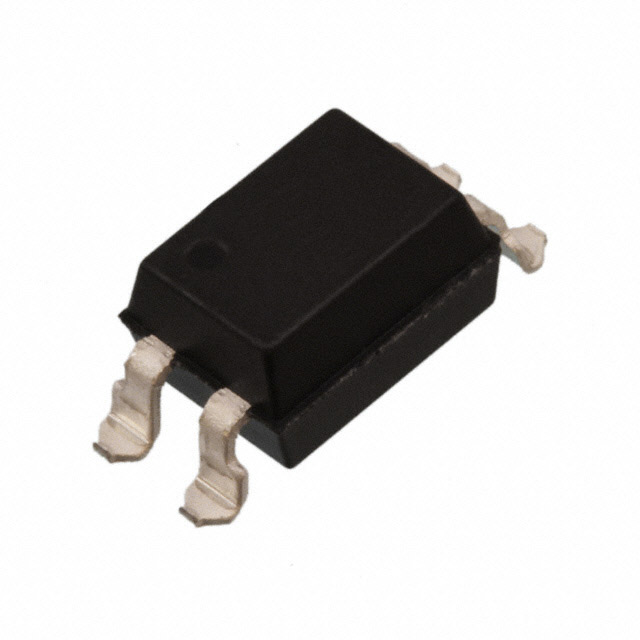

4PIN AC INPUT, SINGLE OPTOCOUPLE
All alternatives
View full reportTechnical parameters
Key specs
Channels1
Isolation voltage7.5 V
Output typeTransistor
Current transfer ratio63 %1mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 200% @ 1mA |
| Current Transfer Ratio (Min) | 63% @ 1mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.5V (Max) |
| Voltage - Isolation | 7.5Vpk |
| Voltage - Output (Max) | 55V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C ~ 100°C |
| Package | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Other | |
| Input Type | AC, DC |
| Mfr | Isocom Components 2004 LTD |
| Output Type | Transistor |
| Product Status | Active |
| Series | SFH628A-2 |
| Turn On / Turn Off Time (Typ) | - |
| Vce Saturation (Max) | 400mV |
