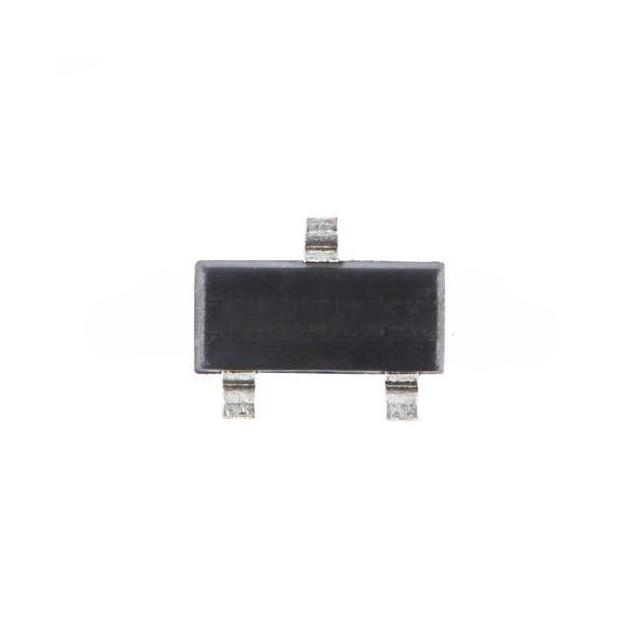

UMWMalaysia
20V 3.77A 750MW 33MR@4.5V,5A 850
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage20 V
Continuous drain current5 A
On-resistance26 mΩMax · 5A
Gate threshold voltage850 mVMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Power Dissipation (Max) | 750mW (Ta) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Other | |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V |
| Mfr | UMW |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 26mOhm @ 5A, 4.5V |
| Series | UMW |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±8V |
| Vgs(th) (Max) @ Id | 850mV @ 250µA |
Documents
No documents are linked to this part yet.
