Micro Commercial CoUnited States

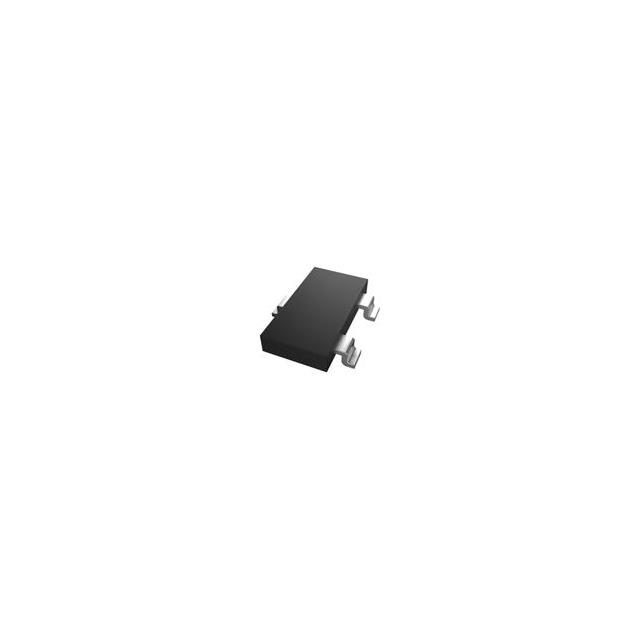

MOSFET P-CH 12V 6A SOT23
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage12 V
Continuous drain current6 A
On-resistance150 mΩMax · 500mA
Gate threshold voltage1 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Drain to Source Voltage (Vdss) | 12 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V |
| Power Dissipation (Max) | 350mW (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Other | |
| Base Product Number | SI2333 |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 2 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1275 pF @ 6 V |
| Mfr | Micro Commercial Co |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 500mA, 1.5V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±8V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
