Vishay SiliconixUnited States

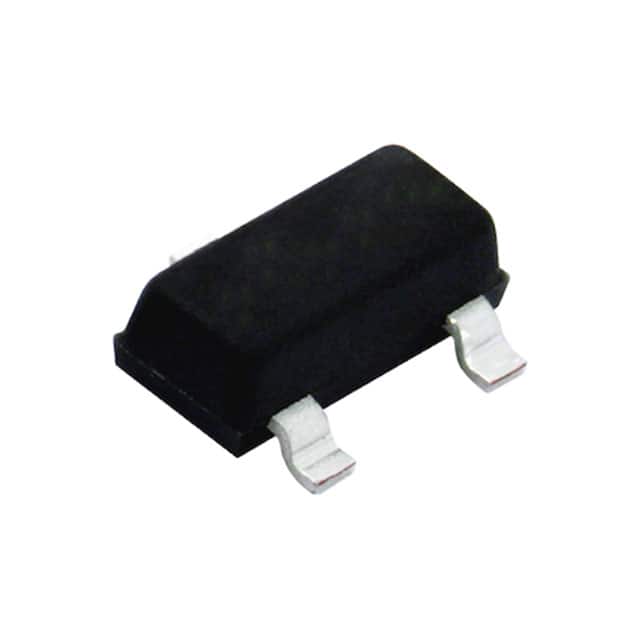

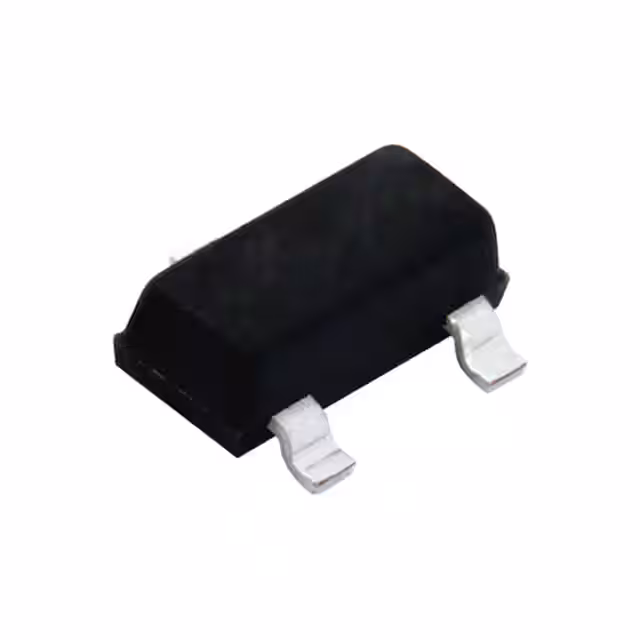

P-CHANNEL 12-V (D-S) MOSFET
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage12 V
Continuous drain current4.1 A
On-resistance32 mΩMax · 5.3A
Gate threshold voltage1 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 4.1A (Ta) |
| Drain to Source Voltage (Vdss) | 12 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Power Dissipation (Max) | 750mW (Ta) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Other | |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1100 pF @ 6 V |
| Mfr | Vishay Siliconix |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 5.3A, 4.5V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±8V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
