Vishay SiliconixUnited States

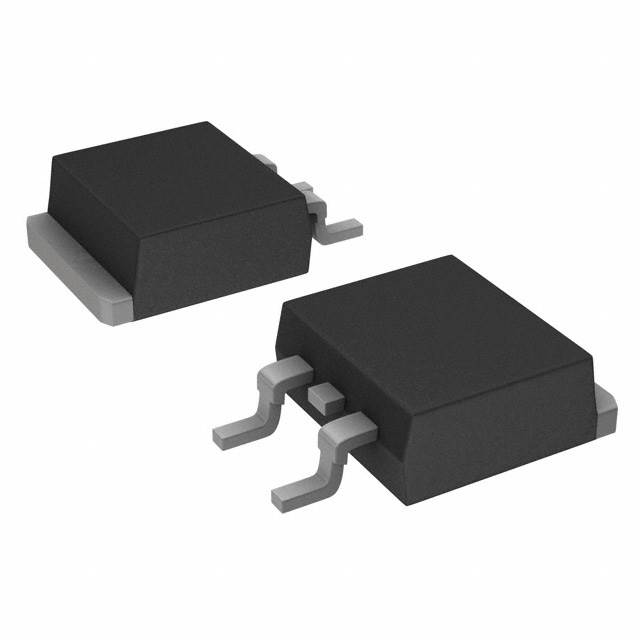

MOSFET N-CH 600V 33A TO263
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage600 V
Continuous drain current33 A
On-resistance99 mΩMax · 16.5A
Gate threshold voltage4 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 33A (Tc) |
| Drain to Source Voltage (Vdss) | 600 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Power Dissipation (Max) | 278W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Other | |
| Base Product Number | SIHB33 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 150 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3508 pF @ 100 V |
| Mfr | Vishay Siliconix |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Rds On (Max) @ Id, Vgs | 99mOhm @ 16.5A, 10V |
| Series | E |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±30V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
